G3 HMI
Red Lion Logo

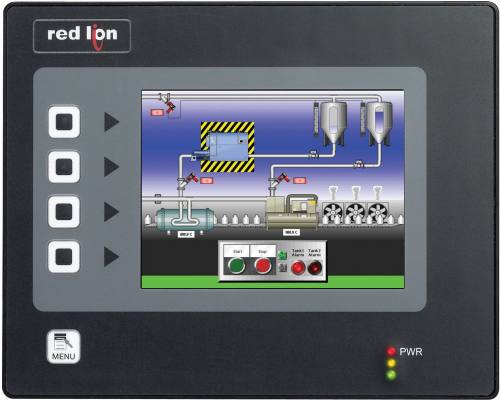

Red Lion G306 HMI


    Red Lion Controls - USA
     G306A & G306C 5.7" TFT & 7.7" STN operator interface HMI
     Please note the G306C is no longer available.
     3rd Generation HMI from Red Lion
    Size

    - 8.83" (224mm) x 7.08" (180mm) x 2.3" (58mm)

    Display

    - Size: 5.7"
    - Type: TFT (G306A),  STN (G306C)
    - Pixels: 320 X 240
    - Colors: 256 QVGA
    - Resistive Analog Touchscreen
    - 5-button keypad for on-screen menus
    - Three front panel LED indicators

    Supply voltage

      +24 VDC ±20%

    Communications

    - Up to 5 RS-232/422/485
      2 RS-232 and 1 RS-422/485 on board
      1 RS-232 and 1 RS422/485 on Option Card

    - 10 Base T/100 Base-TX Ethernet Port
      Supports multiple protocols simultaneously

    - USB 1.1 port (type B)
      Download the unit’s configuration from a PC
      Data Transfers to a PC

    - Multiple protocol converter

    - DeviceNet, CANopen and Profibus DP option cards

    Memory

    - 8 Mbyte Flash
      Unit’s configuration is stored in Non-volatile memory

     Other features

    - Extensive driver list
    - Built-in Web Server and FTP Server/Client
       Remote Web Access and Control Facility
    - CompactFlash Socket for Database/Recipe Storage and Data Logging
    - Configured using free Crimson 2.0 Software
    - UL Listed for use in Hazardous Locations.
      (See literature for class and division details.)

    Protection

    - NEMA 4X / IP66
