Home > Instrumentation > HMI Display Panels > G3 HMI
G3 HMI
Red Lion Logo

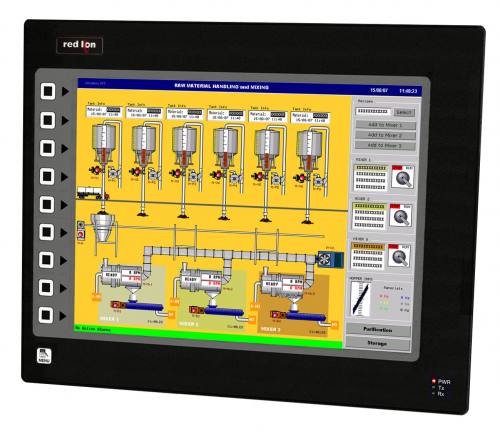

Red Lion G315 HMI


    Red Lion Controls - USA
     G315C000 15" TFT operator interface HMI
     3rd Generation HMI from Red Lion
    Size

    - 16" (406mm) x 13" (330mm) x 2.8" (72mm)

    Display

    - Size: 15-inch LCD
    - Type: TFT
    - Pixels: 1024 X 768
    - Colors: 32K
    - Resistive Analog Touchscreen
    - 10-button keypad for on-screen menus
    - Three front panel LED indicators

    Supply voltage

      +24 VDC ±20%

    Communications

    - Up to 6 RS-232/422/485
      2 RS-232 and 2 RS-422/485 on board
      1 RS-232 and 1 RS422/485 on Option Card

    - 10 Base T/100 Base-TX Ethernet Port
      Supports multiple protocols simultaneously

    - USB 2.0 port (type B)
      Download the unit’s configuration from a PC
      Data Transfers to a PC

    - Multiple protocol converter

    - DeviceNet, CANopen and Profibus DP option cards

    Memory

    - 32 Mbyte Flash
      Unit’s configuration is stored in Non-volatile memory

    Other features

    - Extensive driver list
    - Built-in Web Server and FTP Server/Client
       Remote Web Access and Control Facility
    - CompactFlash Socket for Database/Recipe Storage and Data Logging
    - Configured using free Crimson 2.0 Software

    Protection

    - Nema 4X / IP65



Price: £1889.10


Qty:





Red Lion G315 HMI

PDF Downloads
G315 HMI (858K)

Red Lion
Got a question about Red Lion G315 HMI ?
If you have any question at all about this product, just fill in the boxes below and we'll reply by e-mail within the next 1 working day. Or feel free to give us a call on 01482 225297 - we're here to help!
Your Question/Enquiry:
Your email address:

You may also be interested in:

G3CN0000 CANopen option card
G3RS0000 RS232/RS485 card
G3PBDP00 PROFIBUS DP
G3FILM protective films
