Industrial modems

PSI modems are specifically designed to meet industrial requirements for remote monitoring and alarm generation.

It is possible to remedy many faults online anywhere in the world via the phone or mobile phone network: a fast and inexpensive solution.

As standard, dial-up line connections are used for remote monitoring. Process data is made available continuously using permanent lines or GPRS connections.

Industrial modems

Phoenix Contact - Germany
2313520 PSI-MODEM-SMS-REL/6ADI/4DO/DC

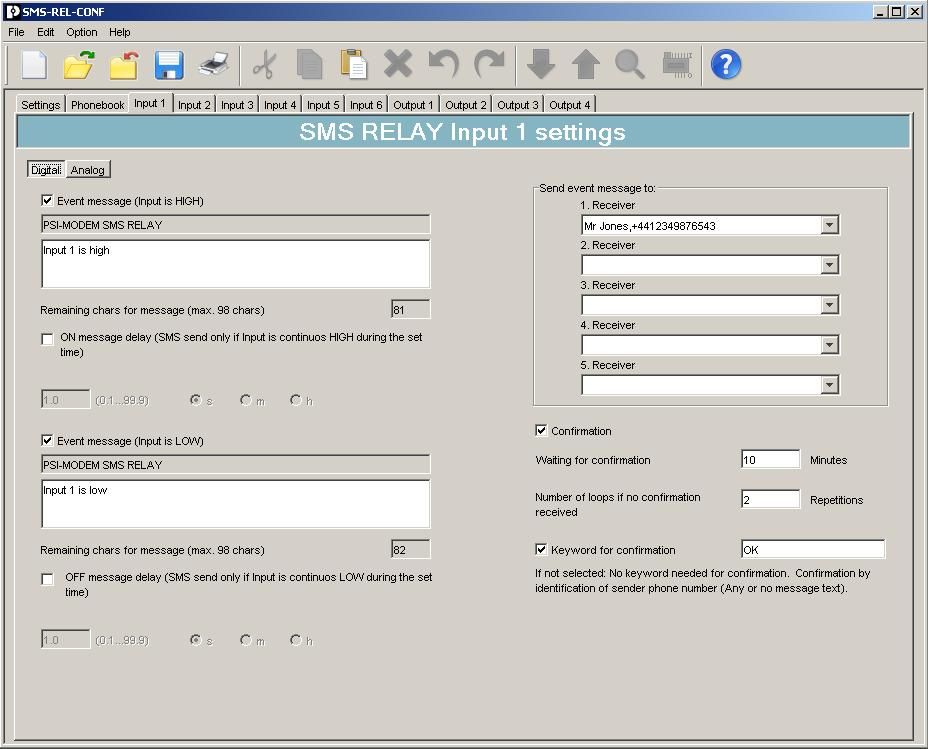

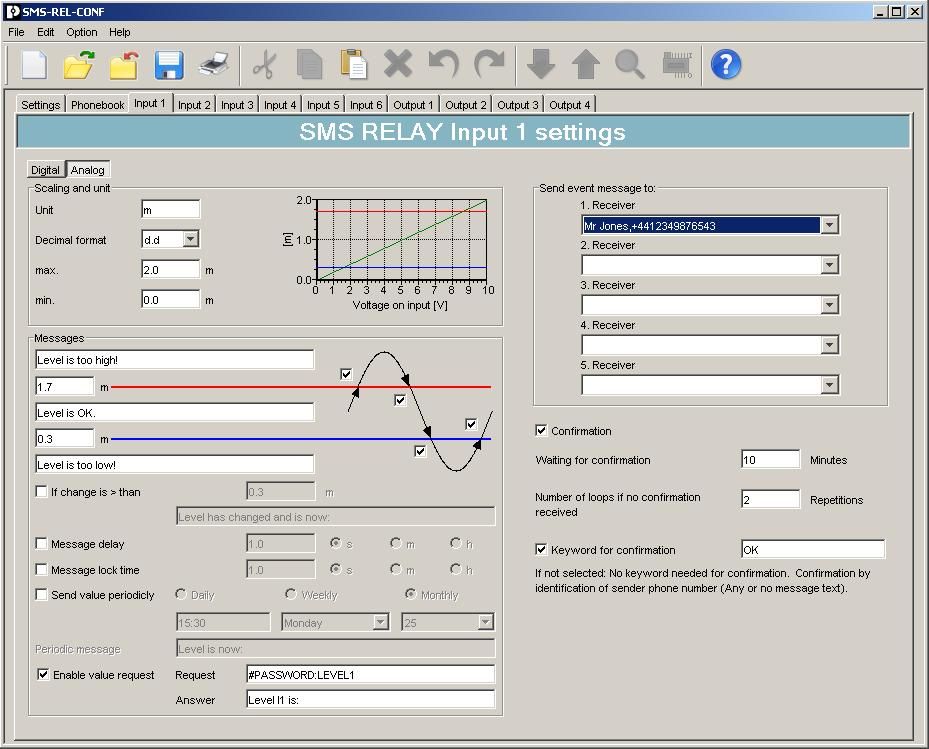

SMS remote control and signaling system for mounting on EN DIN rail. Six digital or configurable analog/digital inputs and four relay outputs with PDT contacts are monitored and controlled using SMS messages via any GSM mobile phone network. The integrated phonebook stores up to 50 numbers that are to receive the SMS messages. Each change of status at the input sends a user-defined message to the selected receivers via SMS. A predefined message can be used to enable and disable the outputs via SMS. In this way, an error can be acknowledged and even removed remotely. The status of all inputs and outputs can be requested via SMS or sent periodicaly. Download: Free SMS-REL-CONF software
Interface	GSM 850, 900, 1800, 1900MHz
Supply voltage	12-48Vdc
Current consumption	15mA for 24Vdc
Signal outputs	4 relay outputs.
Signal inputs	6 analogue (0-10Vdc) or digital (on/off) configurable. Analogue inputs can be scaled.
Connection	Screw terminals, D-SUB 9 for PC connection
Dimensions W/H/L	88/60/90mm

2313520 PSI-MODEM-SMS-REL/6ADI/4DO/DC

Phoenix Contact - Germany
2313513 PSI-MODEM-SMS-REL/6 DI/4DO/AC
SMS remote control and signaling system for mounting on EN DIN rail. Six digital inputs and four relay outputs with PDT contacts are monitored and controlled using SMS messages via any GSM mobile phone network. The integrated phonebook stores up to 50 numbers that are to receive the SMS messages. Each change of status at the input sends a user-defined message to the selected receivers via SMS. A predefined message can be used to enable and disable the outputs via SMS. In this way, an error can be acknowledged and even removed remotely. The status of all inputs and outputs can be requested via SMS or sent periodicaly. Download: Free SMS-REL-CONF software
Interface	GSM 850, 900, 1800, 1900MHz
Supply voltage	110V-240Vac
Current consumption	10mA for 230Vac
Signal outputs	4 relay outputs.
Signal inputs	6 digital (on/off) configurable.
Connection	Screw terminals, D-SUB 9 for PC connection
Dimensions W/H/L	88/60/90mm
