Phoenix Contact MINI UPS

Particularly compact and easy-to-use, the Phoenix Contact MINI-DC-UPS combines a power supply unit and an electronic switch-over unit.

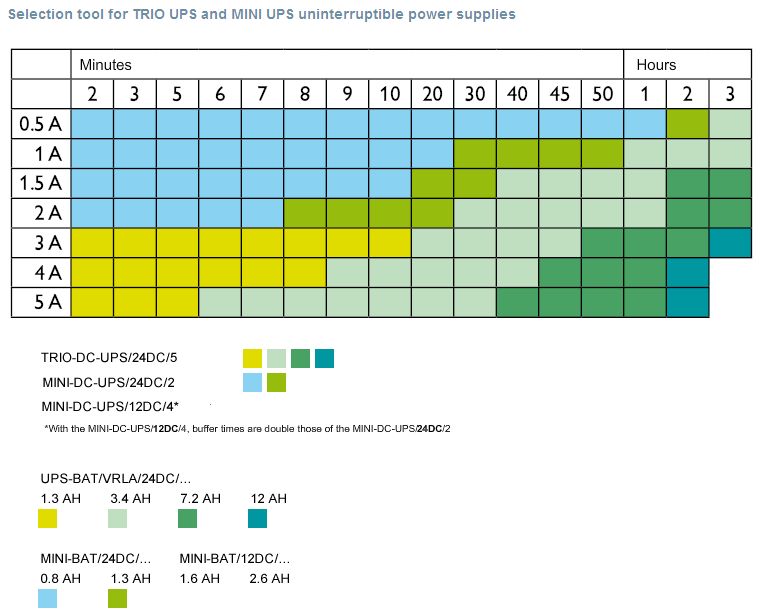

Click on the image below to use and view a larger image of the UPS selection tool for TRIO-UPS-and MINI-UPS.

Phoenix Contact MINI UPS

Phoenix Contact - Germany
2866640 MINI-DC-UPS/24DC/2 UPS power supply
Input voltage	85 to 264VAC 110 to 350VDC
Output voltage	24VDC
Output current	2A
Parallel/series connection	No/Yes
Signalling	LED, relay contact 'Alarm' 'Battery charge' 'Battery mode'
Storage medium	External battery 0.8Ah, 1.3Ah

2866640 MINI-DC-UPS/24DC/2

Phoenix Contact - Germany
2866598 MINI-DC-UPS/12DC/4 UPS power supply
Input voltage	85 to 264VAC 110 to 350VDC
Output voltage	12VDC
Output current	4A
Parallel/Series connection	No/Yes
Signalling	LED, relay contact 'Alarm' 'Battery charge' 'Battery mode'
Storage medium	External battery 1.6Ah, 2.6Ah

2866598 MINI-DC-UPS/12DC/4

Phoenix Contact - Germany
2866666 MINI-BAT/24DC/0.8AH Rechargeable battery module, lead AGM, VRLA technology, 24V DC, 0.8 Ah
Input voltage	24VDC
Output voltage	24VDC
Nominal capacity	0.8Ah
Buffer period	Refer to selection chart
Output current	5A
Parallel connection	Yes

2866666 MINI-BAT/24DC/0.8AH

Phoenix Contact - Germany
2866417 MINI-BAT/24DC/1.3AH Rechargeable battery module, lead AGM, VRLA technology, 24V DC, 1.3 Ah
Input voltage	24VDC
Output voltage	24VDC
Nominal capacity	1.3Ah
Buffer period	Refer to selection chart
Output current	15A
Parallel connection	Yes

2866417 MINI-BAT/24DC/1.3AH

Phoenix Contact - Germany
2866572 MINI-BAT/12DC/1.6AH Rechargeable battery module, lead AGM, VRLA technology, 12V DC, 1.6 Ah
Input voltage	12VDC
Output voltage	12VDC
Nominal capacity	1.6Ah
Buffer period	Refer to selection chart
Output current	10A
Parallel connection	Yes

2866572 MINI-BAT/12DC/1.6AH

Phoenix Contact - Germany
2866569 MINI-BAT/12DC/2.6AH Rechargeable battery module, lead AGM, VRLA technology, 12V DC, 2.6 Ah
Input voltage	12VDC
Output voltage	12VDC
Nominal capacity	2.6Ah
Buffer period	Refer to selection chart
Output current	15A
Parallel connection	Yes
