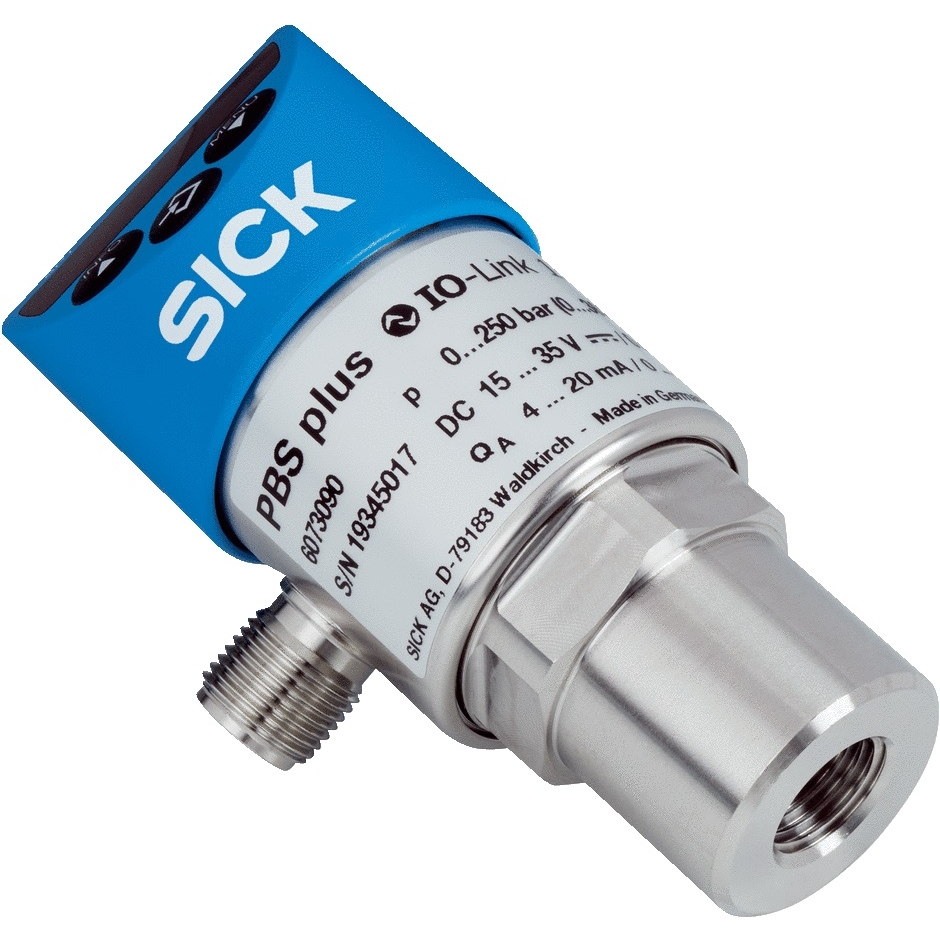

Sick PBS universal pressure switch with IO-Link

PBS universal pressure switch with IO-Link


The electronic pressure switch PBS is designed for pressure monitoring and measurement in liquid and gaseous media. It is pressure switch, transmitter and display in one and the same device. In its standard configuration it has two switching points. In addition, there are configurations available with one or two switching points and an analog output signal.

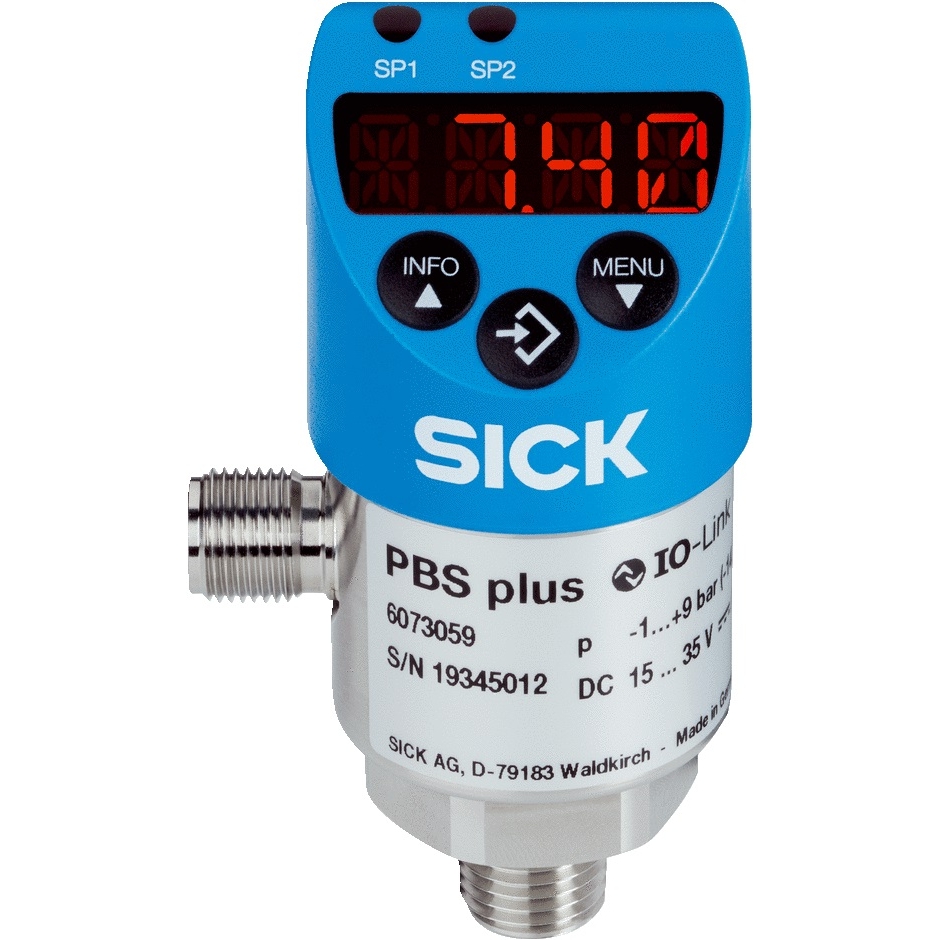

The intuitive setup with the three large buttons and the integrated display are according to the recommendation 24574-1 of the German engineering federation VDMA.

The display and the electrical connector can be rotated against the process connector and against each other to allow well visible display orientation and clean cable routing.

The PBS has a circularly welded stainless steel membrane. Hence, it is well suited for a large variety even of corrosive media.
A large multitude of customary process connectors is available as standard.

Main features of the SICK PBS pressure sensor:

• Compact and robust design
• Rotatable housing for flexible installation
• Safe and simple operation and set-up with three large buttons and well legible display
• Wide application range
• Insensitive against corrosive media through hermetically sealed stainless steel membrane
• Cost reduction through IO-Link

Please note that we have only listed some of the more popular configurations of the SICK PBS range.
If you require a different configuration, please call us.

SICK PBS


Rotate the head AND the process
connection.
