Red Lion LEGEND frequency, speed and rate displays
Red Lion Controls


LG Presetable counter/rate controller, Legend


Red Lion Controls - USA
 LGS/LGD/LGB/LGM Digital counter/rate controller

LGS00000: 1 preset, Yel/Grn backlit
LGS00100: 1 preset, Red backlit
LGD00000: 2 preset, Yel/Grn backlit
LGD00100: 2 preset, Red backlit
LGB00000: 4 preset batch, Yel/Grn backlit
LGB00100: 4 preset batch, Red backlit
LGM00001: 6 preset, Yel/Grn backlit
LGM00101: 6 preset, Red backlit

Size  75 mm x 75 mm
 68mm x 68mm panel cut-out
Display  2 Line, 8 Character Transmissive LCD w/Backlighting
Counter/rate modes  Up/down, Quad x1, x2 & x4, Inhibit, Add/subtract, Add/Add, Batch
 Time interval rate.
 Input frequency: 23KHz mode dependent
Supply voltage  115/230Vac or 12Vdc
Outputs  Relay outputs and transistor (check datasheet)
 RS485 Communications
Protection  NEMA 4X/IP65
Other features

 Programmable Scale Factor
 Programmable Decimal point
 Programmable control inputs
 4 programmable displays
 Non-Volatile E²PROM Memory







Qty:

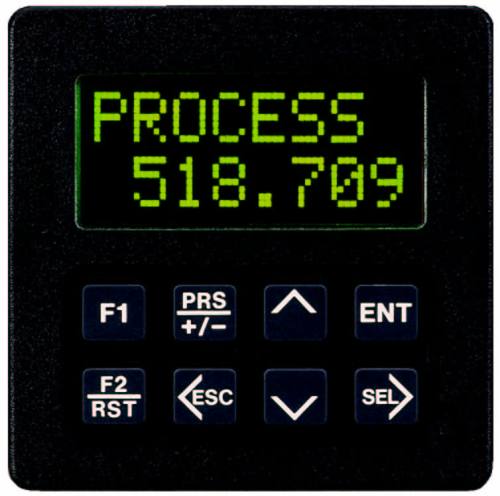

Red Lion Controls Legend counter/rate controller

PDF Downloads
LG Datasheet PDF
