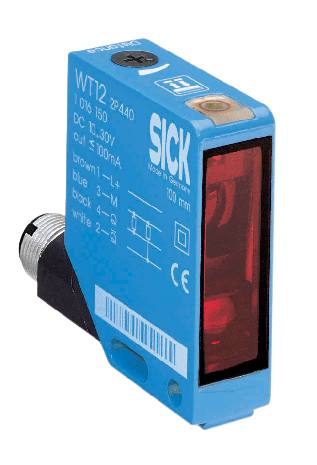

WT12-2 Foreground suppression

Erwin Sick. Foreground suppression

Parts:
WT12-2P440 1016150 35-100mm foreground suppression, PNP, M12 4pin plug
WT12-2P140 1016148 35-100mm foreground suppression, PNP, 2mtr cable
WT12-2N440 1016146 35-100mm foreground suppression, NPN, M12 4pin plug
WT12-2N140 1016145 35-100mm foreground suppression, NPN, 2mtr cable

Erwin Sick - Germany
Foreground suppression
Range: 35-100mm
Supply: 10-30VDC
Red light source
Output: PNP or NPN
Light and Dark switching
Connection: 2mtr cable or M12 plug
Enclosure: IP 67
Temperature: -40°C to 60°C
Housing material: Zinc die-cast
Mounting clamps included


Qty:

PDF Downloads
WT12-2 foreground suppression datasheet (780K)
