Home > Instrumentation > Large Display System > LPAX

Red Lion logo

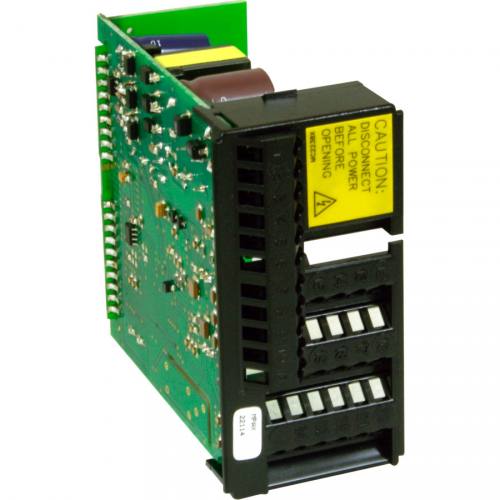

Universal DC input module for LPAX/EPAX MPAXD



Parts:
MPAXD000: 85-250Vac supply
MPAXD010: 11-36Vac/24Vac supply
    Red Lion Controls - USA

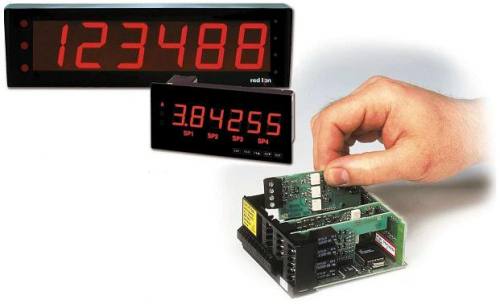

     MPAXD Universal DC input module for LPAX/EPAX
     Note: Requires 5 digit chassis)

    Input Four voltage (300 VDC Max) ranges:
       200mV, 2V, 20V and 300VDC

     Five current (2A DC Max) Ranges:
       200uA, 2mA, 20mA, 200mA and 2ADC

     Three Resistance Ranges:
        100 ohm, 1K ohm and 10K ohm
    Supply voltage 85-250Vac
     11-36Vdc/24Vac
    Outputs Up to Four Setpoint Alarm Outputs
     Relay or transistor modules
     Analog output module
    Communications  RS232, RS485, MODBUS, DeviceNet, Profibus
     Other features Simple scaling method
     16 point scaling for non-linear inputs
     Programmable Decimal point
     Adjustable display update times
     Selectable 24V, 2V and 1.75mA excitation
     Min/max display
     Programmable Function Keys/User inputs
     PC Software Available for Meter Configuration
       (requires serial module)
