Home > Instrumentation > Large Display System > LPAX

Red Lion logo

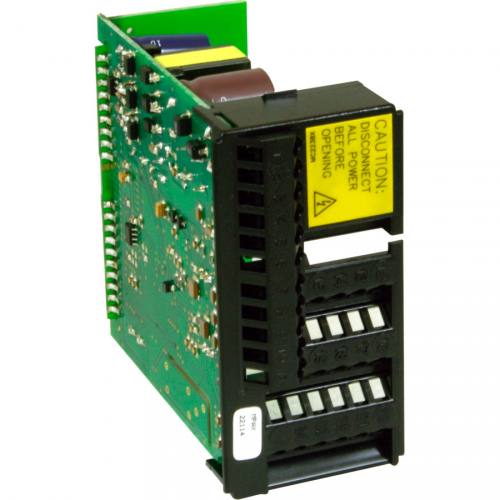

Process input module for LPAX/EPAX MPAXP



Parts:
MPAXP000: 85-250Vac supply
MPAXP010: 11-36Vac/24Vac supply
    Red Lion Controls - USA
     MPAXP Process input module for LPAX/EPAX displays
     Note: Requires 5 digit chassis)

    Input 0(4) - 20mA
     0 - 10Vdc
    Supply voltage 85-250Vac
     11-36Vdc/24Vac
    Outputs Up to Four Setpoint Alarm Outputs
     Relay or transistor modules
     Analog output module
    Communications  RS232, RS485, MODBUS, DeviceNet, Profibus
     Other features Simple scaling method
     16 point scaling for non-linear inputs
     Programmable Decimal point
     Adjustable display update times
     24Vdc excitation power
     Min/max display
     Programmable Function Keys/User inputs
     PC Software Available for Meter Configuration
       (requires serial module)




Qty:





Red Lion MPAXP for LPAX EPAX displays

PDF Downloads
PAX analogue PDF
