Temperature Module for LPAX/EPAX MPAXT



Parts:
MPAXT000: 85-250Vac supply
MPAXT010: 11-36Vac/24Vac supply
    Red Lion Controls - USA

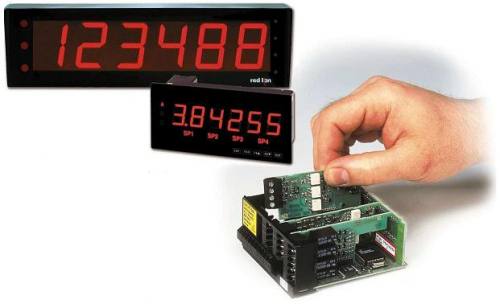

     MPAXT Temperature Module for LPAX/EPAX
     Note: Requires 5 digit chassis)

    Input

     Thermocouple:
        T, E, J, K, R, S, B, N and C.
     RTD, PT100:
        Four types.
    Custom mV range:
        -10 to 65mV

    Supply voltage 85-250Vac
     11-36Vdc/24Vac
    Outputs Up to Four Setpoint Alarm Outputs
     Relay or transistor modules
     Analog output module
    Communications  RS232, RS485, MODBUS, DeviceNet, Profibus
     Other features F or C Unit Overlay w/Backlight (LPAX only)
     Simple scaling method
     16 point scaling for custom mV inputs
     Programmable Decimal point
     Adjustable display update times
     Min/max display
     Programmable Function Keys/User inputs
     PC Software Available for Meter Configuration
       (requires serial module)




Qty:





Red Lion MPAXT for LPAX EPAX displays

PDF Downloads
PAX analogue PDF
