Home > Instrumentation > Panel Meter - Display only



DC Voltmeter LCD Backlight CUB4V


Parts:
CUB4V000: LCD DC Voltmeter
CUB4V010: LCD Yel/Grn Backlight DC Voltmeter
CUB4V020: LCD Red Backlight DC Voltmeter
    Red Lion Controls - USA

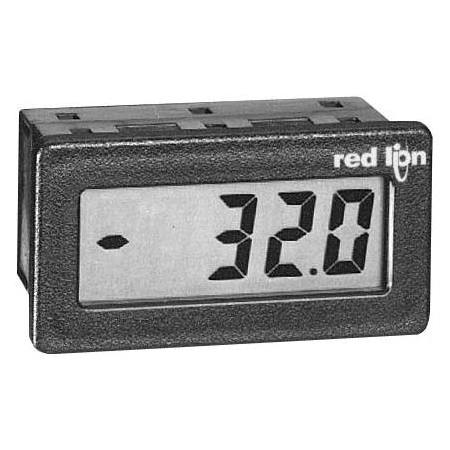

     CUB4V DC Voltmeter LCD

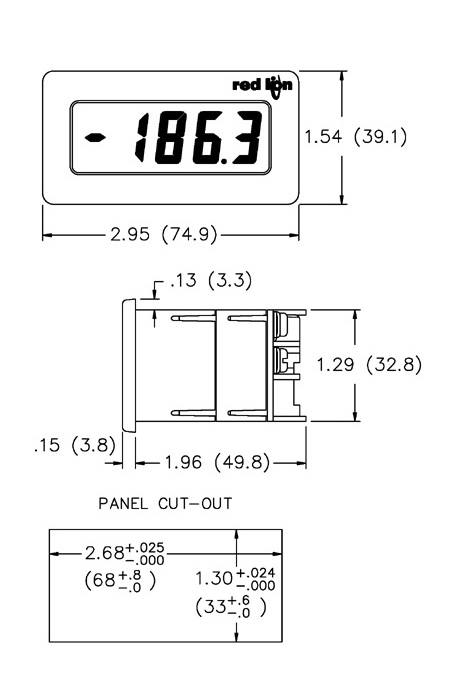

    Size  39 x 75mm
     Cut-out 68 x 33mm
    Display 3 1/2 Digit, 0.6" (15.2 mm) LCD
     Red or Yellow/Green, Positive/Negative Backlighting
    Input Four selectable ranges
     0-199.9 mV through 199.9 VDC
    Supply voltage 9-28VDC
    Protection NEMA 4X/IP65
    Other features Selectable decimal point




Qty:





Red Lion CUB4V DC volt meter

PDF Downloads
CUB4V/I PDF

Red Lion
Got a question about DC Voltmeter LCD Backlight CUB4V ?
If you have any question at all about this product, just fill in the boxes below and we'll reply by e-mail within the next 1 working day. Or feel free to give us a call on 01482 225297 - we're here to help!
Your Question/Enquiry:
Your email address:
