Home > Instrumentation > PID Control
Red Lion PID controllers


T16 PID Temperature Controller


Parts:
T1610000: OP1 rly, 85-250Vac
T1610010: OP1 rly, 18-36Vdc/24Vac
T1611100: OP1+AL1+AL2 rly, 85-250Vac
T1611110: OP1+AL1+AL2 rly, 18-36Vdc/24Vac
T1620000: OP1 logic/ssr, 85-250Vac
T1620010: OP1 logic/ssr, 18-36Vdc/24V
T1621100: OP1 logic/ssr, AL1+AL2 rly, 85-250Vac
T1621110: OP1 logic/ssr, AL1+AL2 rly, 18-36Vdc/24V
T1641100: Analogue OP, AL1+AL2 rly, 85-250Vac
T1641110: Analogue OP, AL1+AL2 rly, 18-36Vdc/24Vac

TP16KIT1: Software, comms module, 115Vac power adapter
TP16KIT2: Software, comms module, DC user supply
    Red Lion Controls - USA

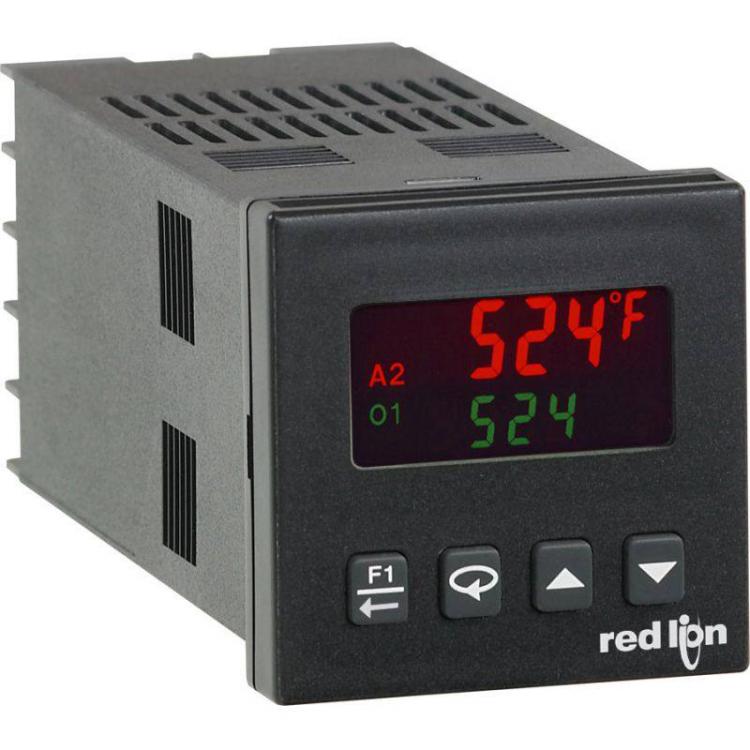

     T16 PID Temperature Controller

    Size  1/16 DIN (48x48mm)
    Display

     2 line by 4 Digit LCD with backlighting
     Top line (Red) - Process value 0.3" (7.6mm)
     Bottom line (Green) - Parameters  0.2" (5.1mm)

    Input

     TC and RTD Inputs

    Supply voltage 85-250Vac models
     18-36Vdc/24Vac
    Outputs Relay, Logic/SSR drive and analog
     Check datasheet for models
    Protection NEMA 4X/IP65
    Other features PID Control with Reduced Overshoot
     On Demand Auto-Tuning of PID Settings
     Programmable Function Key and User input
     PC or Front Panel Programming
     PC Configurable with TP16KIT




Qty:





Red Lion T16 temperature controller

PDF Downloads
T16/P16 PDF
TP16KIT PDF

Red Lion
