Home > Instrumentation > PID Control
Red Lion PID controllers


T48 PID Temperature Controller


Parts:
T4810000: O1 relay AC supply
T4811000: O1+AL1 relay AC supply
T4811100: O1+AL1+AL2 relay AC supply
T4811100: O1+AL1+AL2 relay AC supply
T4810101: O1/AL1+AL2 relay, Anl out AC supply
    Red Lion Controls - USA
     T48 PID Temperature Controller
     Note: Only 4 models have been listed on this site.
              Please refer to the datasheet for the complete range.
    Size  1/16 DIN (48x48mm)
    Display

     2 line by 4 Digit LED
     Top line (Red) - Process value 0.4" (10.2mm)
     Bottom line (Green) - Parameters  0.3" (7.6mm)

    Input

     TC and RTD Inputs

    Supply voltage 85-250Vac models
     18-36Vdc/24Vac models
    Outputs Relay, Logic/SSR drive, analog and triac
     Check datasheet for models
    Protection NEMA 4X/IP65
    Communications RS485 (Please call)
     Other features Heat/Cool
     PID Control with Reduced Overshoot
     On Demand Auto-Tuning of PID Settings
     Programmable lower display and User input
     PC or Front Panel Programming




Qty:

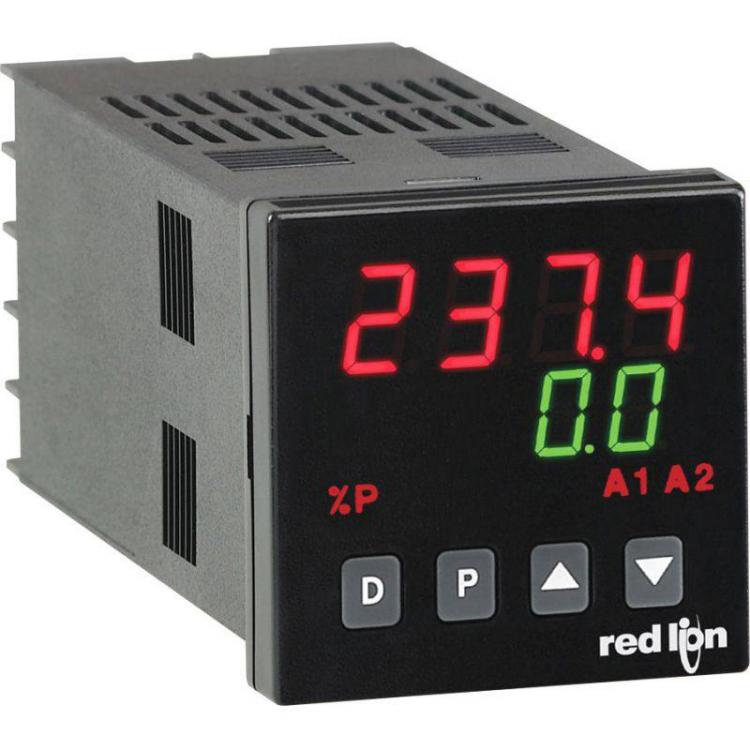

Red Lion T48 temperature controller

Red Lion
Got a question about T48 PID Temperature Controller ?
If you have any question at all about this product, just fill in the boxes below and we'll reply by e-mail within the next 1 working day. Or feel free to give us a call on 01482 225297 - we're here to help!
Your Question/Enquiry:
Your email address:
