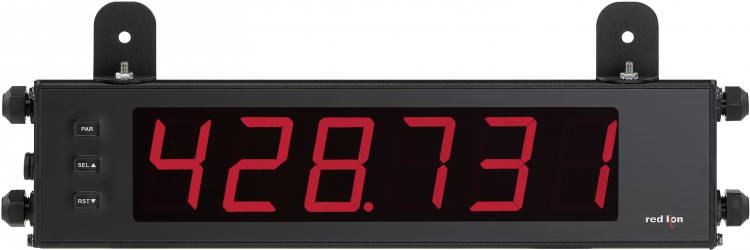

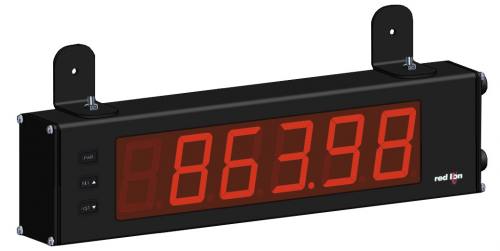

LD2T LD4T Large timer display



    Red Lion Controls - USA
     LD2T LD4T 2.25" or 4" Large timer display.

    LD2T06P0 2.25" timer
    LD4T06P0 4" timer

    Size  2.25" display: 16" (406mm) x 4" (101mm)
     4" display: 26" (660mm) x 7.875" (200mm)
    Display 6 Digit, 2.25" (57mm) or 4" (101mm) Red LED
    Timer/counter modes Bi-directional timing
     2 inputs and 8 timing modes
     18 Selectable timer ranges
     5-Digit cycle counting
    Supply voltage Universally Powered
      50-250Vac
      21.6-250Vdc
    Outputs

     Relay

    Communications  Selectable RS232 or RS485
    Protection NEMA 4X/IP65
    Other features Programmable User Input
