Home > Sensors > Ewin Sick > Contrast & Registration Scanners

Sick logo

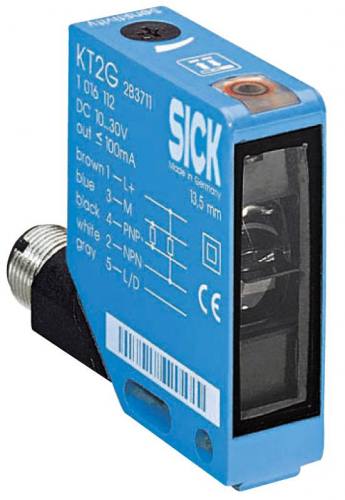

KT2 Contrast scanner

Erwin Sick Contrast scanner.

Parts:
KT2G-2B3711 1016112  Green LED
KT2R-2B3711 1016115  Red LED
KT2R-2B3721 1016114  Red LED, 20mS Off delay

  • Scanning range: 13,5mm
  • Light source: Green and Red LED models
  • Light spot size: 2mm
  • Sensitivity: Manual adjustment
  • Supply voltage: 10-30VDC
  • Switching output: PNP and NPN
  • Light/dark switching control
  • Response time: <= 300µs
  • Switching frequency:10kHz
  • Connection type:M12, 5-pin
  • Enclosure rating: IP 67
  • Housing material: Zinc die-cast




Qty:





Sick KT2

PDF Downloads
KT2G-2B3711 PDF
