Parts:

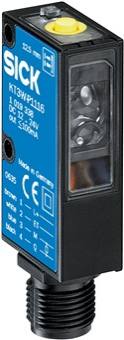

KT3W-N1116 1019337 Red/green/blue, 2 step teach-in, NPN
KT3W-P1116 1019338 Red/green/blue, 2 step teach-in, PNP
KT3W-P1126 1022933 Red/green/blue, 2 step teach-in, PNP 20mS OFF delay

KT3G-N1116 1019445 Green, 2 step teach-in, NPN
KT3G-P1116 1019446 Green, 2 step teach-in, PNP

KT3W-N1115 1025325 Red/green/blue, Dynamic teach-in, NPN
KT3W-P1115 1025326 Red/green/blue, Dynamic teach-in, PNP

• Scanning range: 12,5 mm ± 2 mm
• Light source: LED light: red, blue, green or red models
• Light spot size: 1.5 x 6.5
• Dimensions (W x H x D): 12x40x22mm
• Sensitivity: 2-point Teach-in or dynamic models
• Supply voltage: 24VDC ±20%
• Switching output: PNP or NPN models
• Connection type: M12, 4-pin
• Enclosure rating: IP67
• Housing material: ABS
• Ambient operation temperature, -10°C - +55°C
