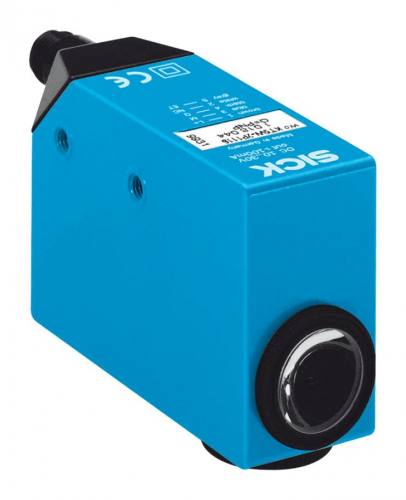

KT5G manual adjustment

Erwin Sick. Contrast scanner.
Parts:
KT5G-2N1111 1015981 Green LED, 10mm scan, manual adj, NPN, M12 4-pin
KT5G-2P1111 1015993 Green LED, 10mm scan, manual adj, PNP, M12 4-pin
KT5G-2P1121 1015997 Green LED, 10mm scan, manual adj, PNP, M12 4-pin, 20mS OFF delay
KT5G-2P1211 1015993 Green LED, 20mm scan, manual adj, PNP, M12 4-pin

Scanning range:10mm or 20mm ± 3mm
Light source: LED
Type of light: green light
Light spot size: see datasheet
Light spot direction: longitudinal
Dimensions (WxHxD):30,4x53x80mm
Sensitivity: Manual
Supply voltage DC 10-30 V
Switching output: PNP and NPN models
Response time: 50 µs
Switching frequency:10 kHz
Connection type:M12,4-pin
Enclosure rating: IP 67
Housing material: Coated metal
Ambient operation temperature, -10°C - +55°C
Other models available - please call


Qty:

PDF Downloads
KT5 manual adjust datasheet (621K)
