Home > Instrumentation > Panel Meter - Display only > CUB5 panel meters

Red Lion logo


Thermocouple indicator CUB5TC


Parts:
CUB5TCB0: Thermocouple, Red/green backlight
CUB5RTR0: Thermocouple, Reflective
    Red Lion Controls - USA
     CUB5TC Thermocouple indicator

    Size  39 mm x 75 mm
    Display 5 Digit, 0.48" (12.2 mm) LCD
     Reflective or User-Selectable Green/Red LED Backlighting
     Display color change capability at setpoint output
     °F or °C Display annunciators
    Input

     Thermocouple input types:
       T, E, J, K, R, S, B, N, or mV
    Conforms to ITS-90 temperature standard
    Cold Junction compensation (Enable/Disable)

    Supply voltage 9-28Vdc
    Outputs Single relay output option
     Dual sinking DC option
     (see CUB5 accessories)
    Communications  RS232 or RS485 options
     (see CUB5 accessories)
    Protection NEMA 4X/IP65
     Other features Selectable °F or °C
     1 or 0.1 degree resolution
     Programmable temperature offset
     Minimum and Maximum Display capture
     Programmable User input
     Units display indicator
     PC Software Available for Meter Configuration
       (requires serial module)




Qty:

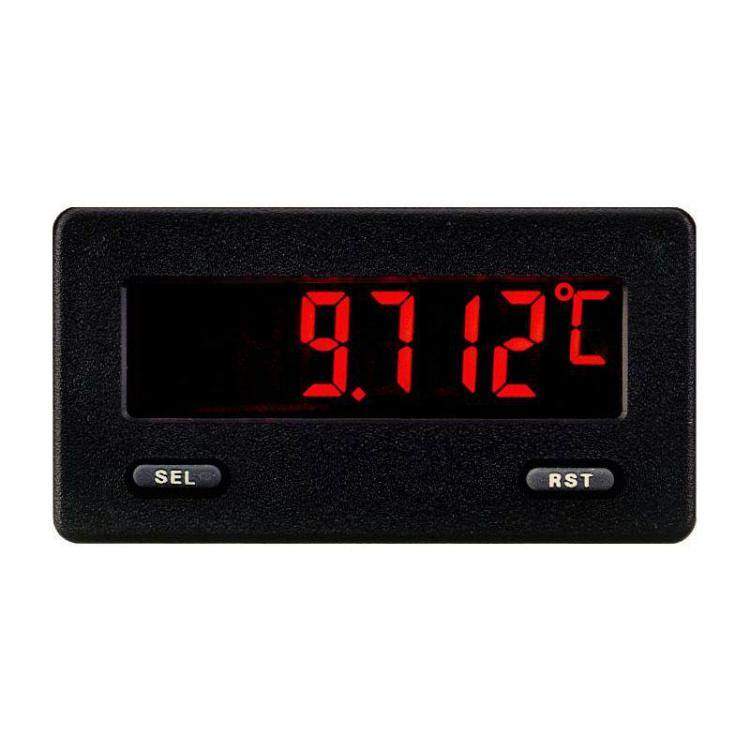

Red Lion CUB5TC thermocouple meter

PDF Downloads
CUB5TC PDF (800K)

Red Lion
Got a question about Thermocouple indicator CUB5TC ?
If you have any question at all about this product, just fill in the boxes below and we'll reply by e-mail within the next 1 working day. Or feel free to give us a call on 01482 225297 - we're here to help!
Your Question/Enquiry:
Your email address:
