IFM Electronic Level sensing devices
IFM Electronic Level sensing devices


IFM LK0264A-A-OOKQPKG/US-100 (LK7022)


    IFM Electronic - Germany
    LK7022 LK0264A-A-OOKQPKG/US-100
    Level sensor/probe for hydrous coolants, mineral oils (dielectric constant <3), water, media similar to water. Cannot be used for media with separation layers (oil + water; oil/metal layer) and cannot be used for acids and alkalis.
    Output signal2x PNP, programmable NO/NC
    Housing materialsEPDM/X (Santoprene); FPM (Viton); brass Optalloy-plated; NBR (Buna N); PA; PBT (Pocan); PC (Makrolon); PP (polypropylene)
    ConnectionM12, 4 pin plug
    Probe diameter (mm)16
    Probe length (mm)264
    Active range A (mm)195
    Inactive range I1 / I2 (mm)53/15
    Display7 segment LED readout of parameters
    ProtectionIP 67, III
    Operating voltage18-30Vdc
    TemperatureCheck data sheet


Price: £210.60


Qty:

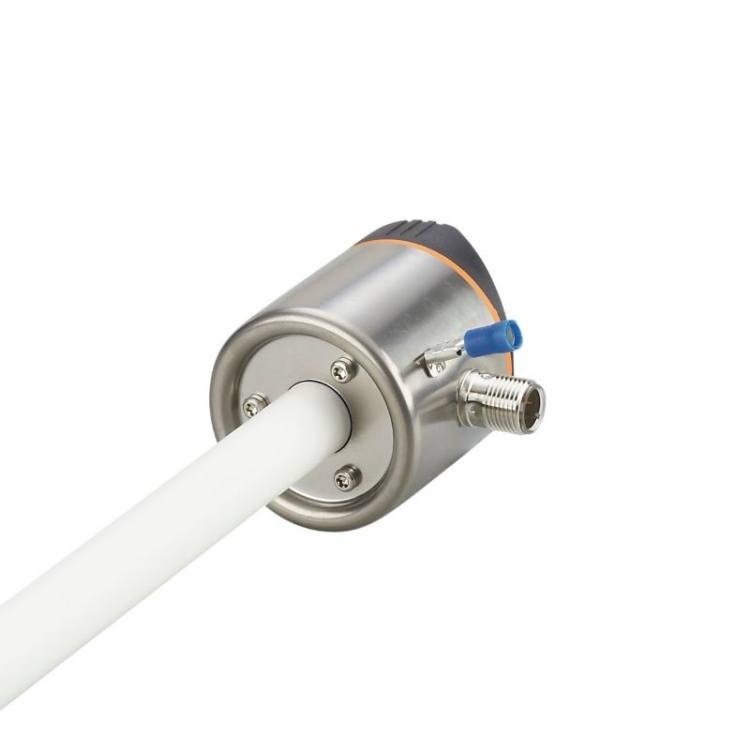

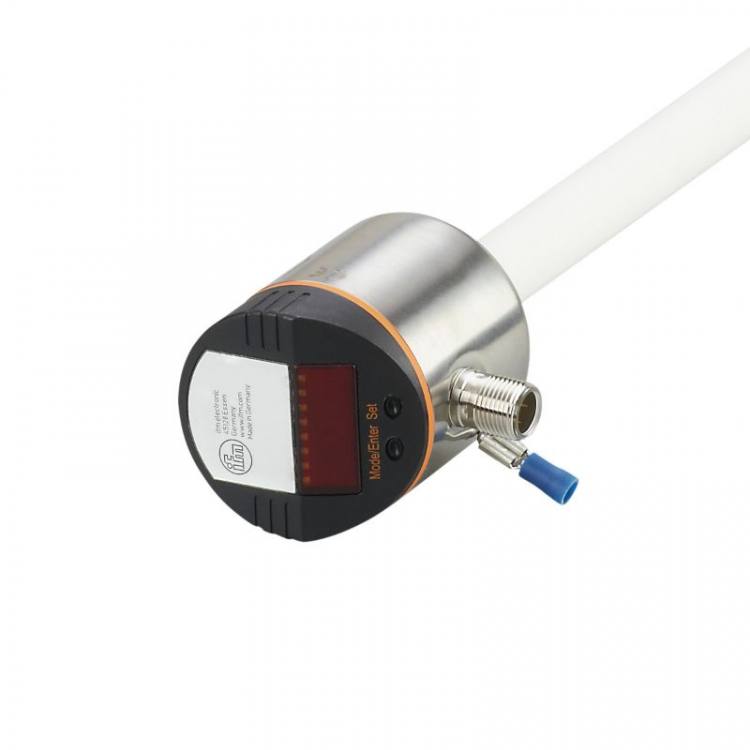

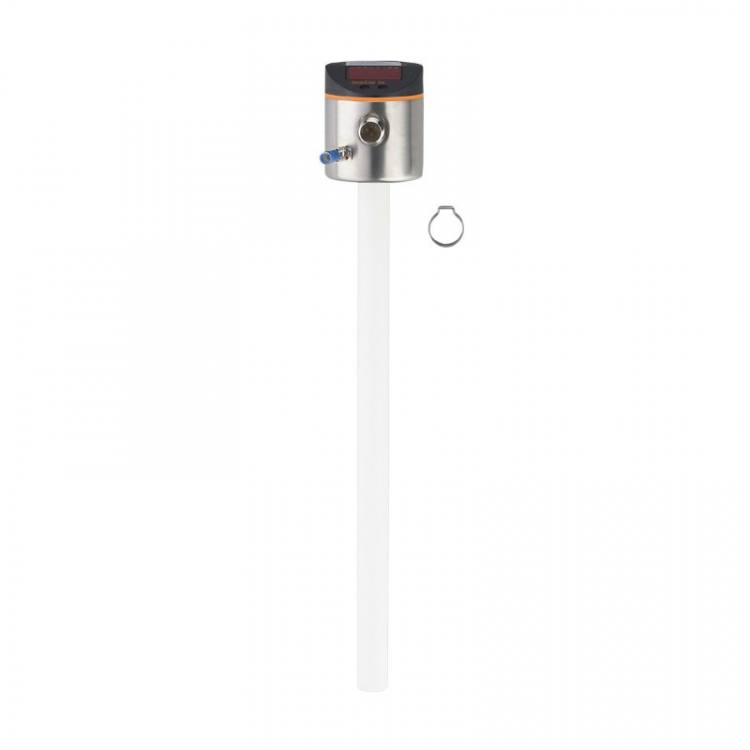

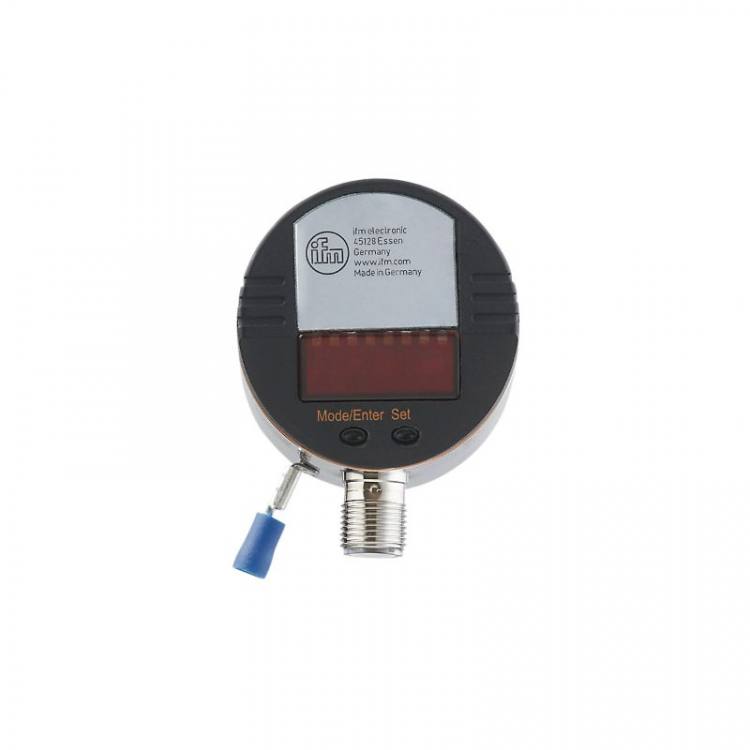

IFM Electronic LK7022 capacitive level probe

IFM Electronic
