Active range 360mm
Operating voltage 12-30VDC
Setting via Programming button
Maximum speed of the change of level 100mm/sec
Power-on delay time 3sec
Operating temperature 0-60°C
Medium temperature 0-65°C
Protection IP 67, III
Function display
Switching status LED
System pressure, function LED
2 x red
7-segment LED display
Connection via M12 connector, gold-plated contacts

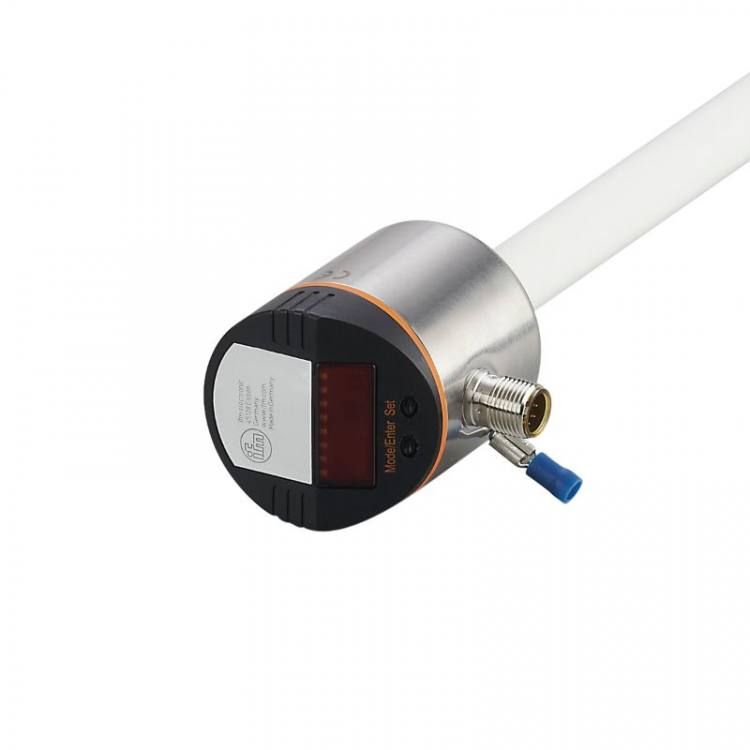

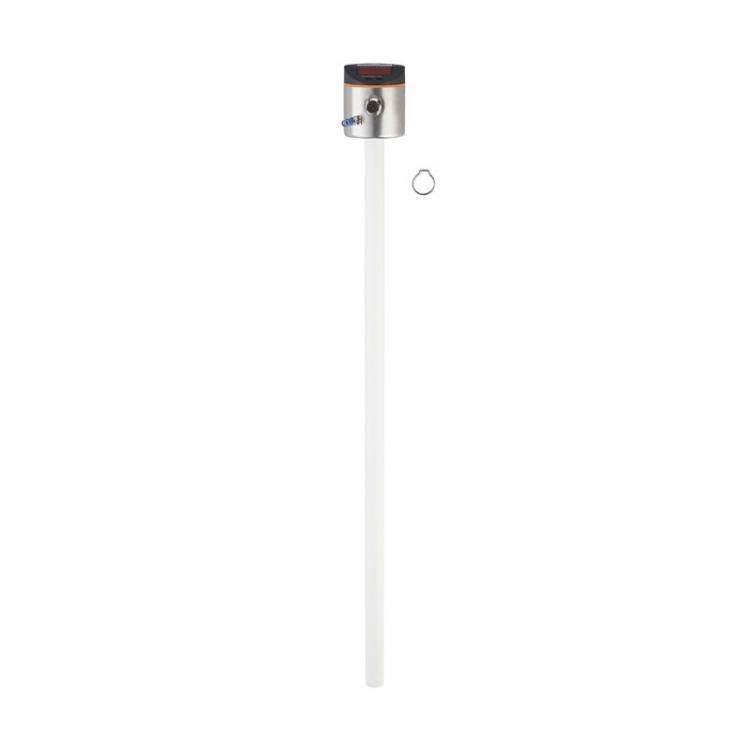

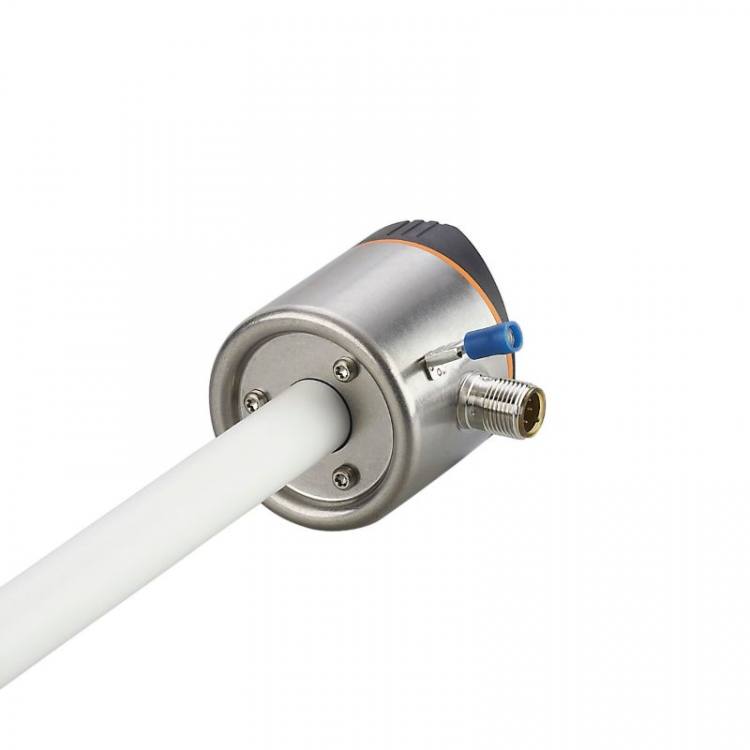

- Electronic level sensor LK
- Probe length = 472 mm
- 2 switching outputs
- 7-segment LED display
- Suitable for use in small to medium sized tanks and vessels
- Industrial processes e.g. cooling lubricant applications and hydraulic systems
