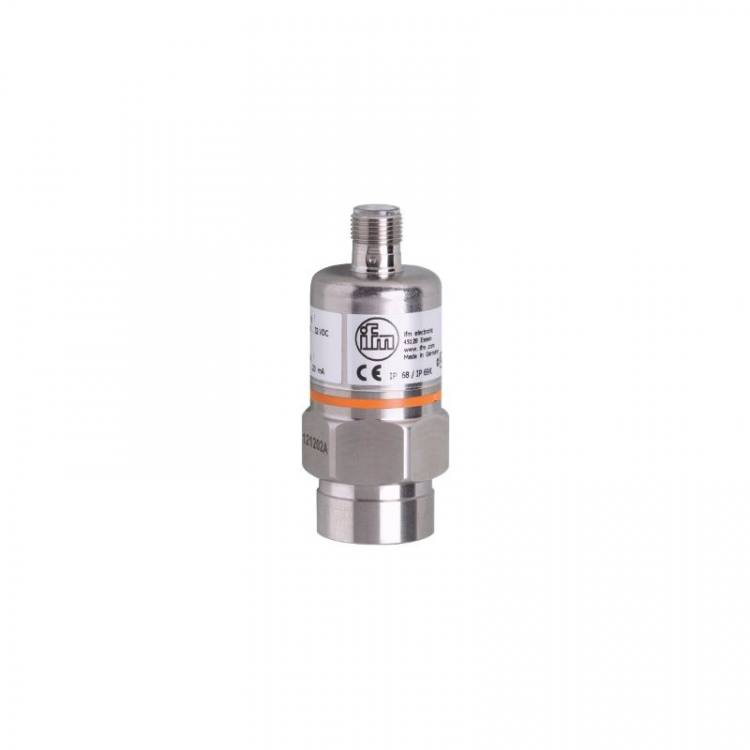

Pressure Sensor PA3020

IFM Electronic. 0-400Bar Loop Powered

  • Operating voltage 10.8 - 30 VDC
  • Reverse polarity & Overload Protection
  • Analogue output 4...20 mA
  • Permissible overl. pressure 600[bar]
  • Bursting pressure 100[Bar]
  • Response time analogue output 3ms
  • Operating temperature 25...80°C
  • Medium temperature 25...80°C
  • Protection IP 67, III
  • Min. pressure cycles 100 million
  • Housing material FPM (Viton),PA,Pocan,stainless steel (304S15)
  • Materials (wetted parts) FPM (Viton); ceramics; stainless steel (303S22)
  • Connection M12 4pole connector


Price: £124.10


Qty:






PDF Downloads
PA3020 pdf
Got a question about Pressure Sensor PA3020 ?
If you have any question at all about this product, just fill in the boxes below and we'll reply by e-mail within the next 1 working day. Or feel free to give us a call on 01482 225297 - we're here to help!
Your Question/Enquiry:
Your email address:
