Parts:
G308A000: 8.4" 256-color 640x480 TFT
G308C000: 7.4" 256-color 640x480 DSTN

Red Lion Controls - USA

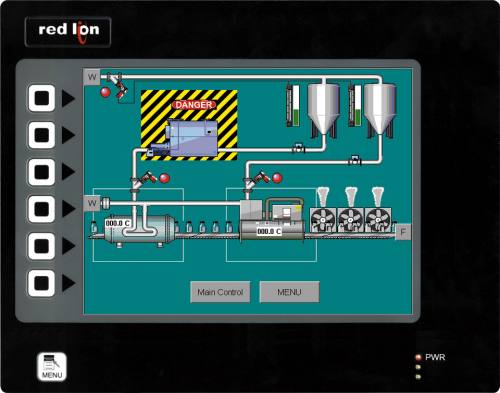

G308A & G308C 8.4" TFT & 7.7" DSTN operator interface HMI
3rd Generation HMI from Red Lion
Size	- 10.32" (262mm) x 8.18" (208mm) x 2.6" (66mm)
Display	- Size: 8.4" (G308A), 7.7" (G308C)  - Type: TFT (G308A),  DSTN (G308C) - Pixels: 640 X 480 - Colors: 256 VGA - Resistive Analog Touchscreen - 6-button keypad for on-screen menus - Three front panel LED indicators
Supply voltage	+24 VDC ±20%
Communications	- Up to 5 RS-232/422/485   2 RS-232 and 1 RS-422/485 on board   1 RS-232 and 1 RS422/485 on Option Card  - 10 Base T/100 Base-TX Ethernet Port    Supports multiple protocols simultaneously - USB 1.1 port (type B)   Download the unit’s configuration from a PC   Data Transfers to a PC  - Multiple protocol converter - DeviceNet, CANopen and Profibus DP option cards
Memory	- 8 Mbyte Flash     Unit’s configuration is stored in Non-volatile memory
Other features	- Extensive driver list - Built-in Web Server and FTP Server/Client    Remote Web Access and Control Facility  - CompactFlash Socket for Database/Recipe Storage and Data Logging  - Configured using free Crimson 2.0 Software - UL Listed for use in Hazardous Locations.   (See literature for class and division details.)
Protection	- NEMA 4X / IP66
