Red Lion Controls CUB7 counters
Red Lion Controls


CUB7P Counter LCD display


Red Lion Controls - USA
 CUB7P Digital counter LCD

CUB7P000: LS input, positive image reflective
CUB7P010: LS input Yel/Grn backlight
CUB7P020: LS input Red backlight
CUB7P100: Voltage input, positive image reflective
CUB7P110: Voltage input Yel/Grn backlight
CUB7P120: Voltage input Red backlight
CUB7P200: HS input, positive image reflective
CUB7P210: HS input Yel/Grn backlight
CUB7P220: HS input Red backlight
BNL10000: Replacement lithium battery

Size  28 mm x 51 mm
Display  8 Digit, 0.35" (9 mm) LCD
 Reflective, Yellow/Green or Red LED Backlighting
Counter modes  Count up,
 CUB7P0 (Contact input): 30Hz
 CUB7P1 (Voltage input): 30Hz
 CUB7P2 (High speed input): 10KHz
Supply  Internal 3 V Lithium Battery
 External 9 - 28 VDC Required for Backlit Models
Input signal  CUB7P0: Voltage free contact input
 CUB7P1: 10 - 300 VAC/DC
 CUB7P2: 3VDC max or NPN open collector
Protection  NEMA 4X/IP65
Other features  Front Panel and Remote Reset
 Decimal Points and Scaling




Qty:

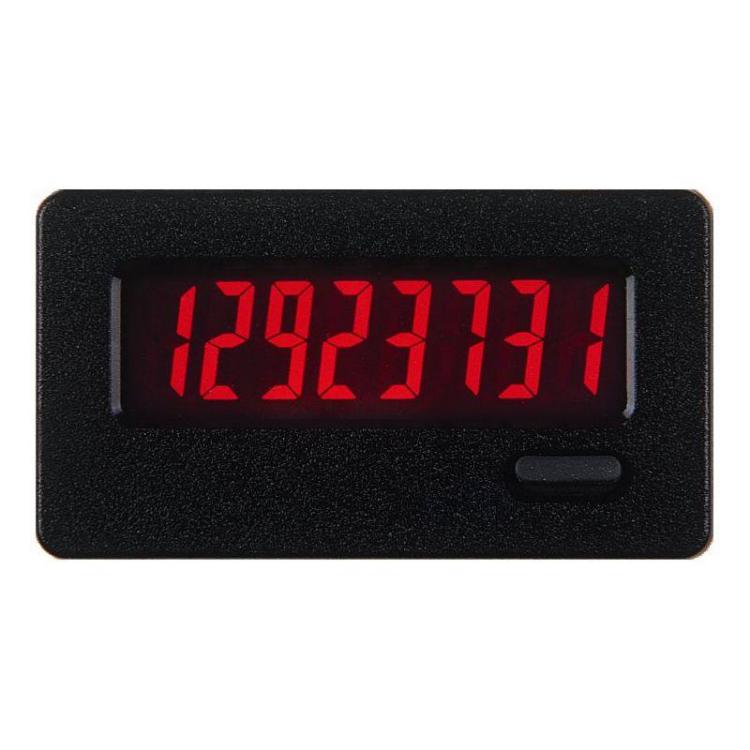

Red Lion Controls CUB7P LCD counter

PDF Downloads
CUB7P PDF
