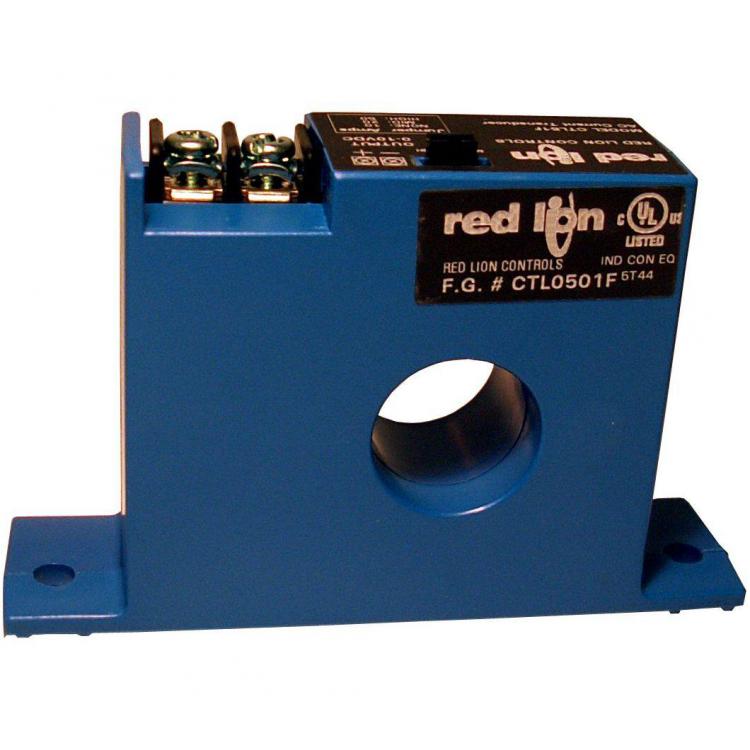

The model CTL average responding AC current transducers combine a current transformer and a signal conditioner in a single package. The CTL transducers are designed for use with "linear" or sinusoidal AC waveforms, and are best suited for constant speed loads or on/off loads. They feature jumper selectable input current ranges up to 200A and have models with 0-10VDC or 4-20 mA outputs. Models are available in both solid and split core cases.
Parts:
CTL0052S: 5A/4-20mA, split case, current transformer.
CTL0501F: 50A/0-10VDC, fixed case, current transformer.
CTL0502S: 50A/4-20mA, split case, current transformer.
CTL0502F: 50A/4-20mA, fixed case, current transformer.
CTL2001F: 200A/0-10VDC, fixed case, current transformer.
CTL2002F: 200A/4-20mA, fixed case, current transformer.
CTL2002S: 200A/4-20ma, split case, current transformer.
- Red Lion Controls
- AC Current Transducers
- Average Responding Output: 0-10 VDC or 4-20 mA
- Jumper Selectable Ranges
- Output is Magnetically Isolated from the Input
- Split-core and Fixed-core Cases
