Contrinex sensors

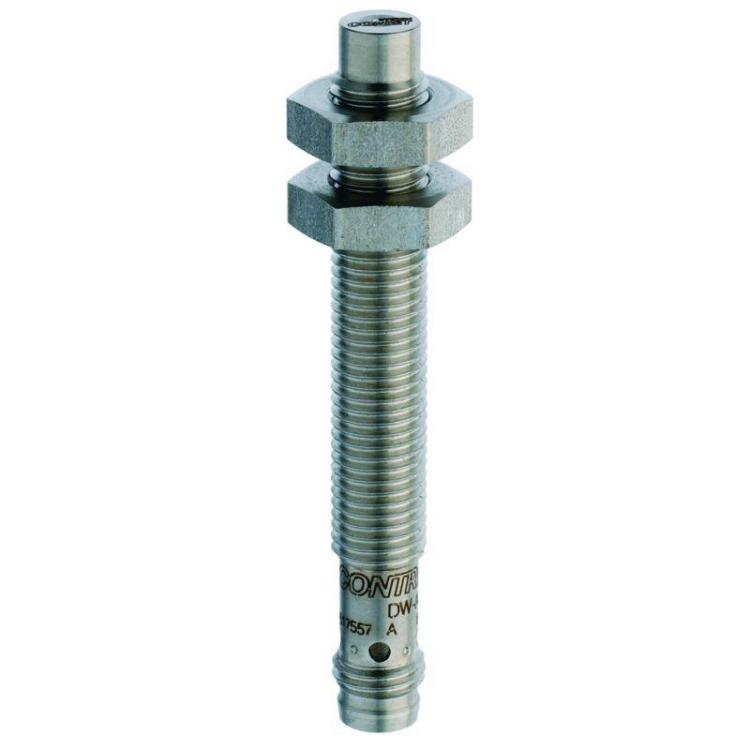

DW-AS-71?-M8-001 Inductive sensor


    Contrinex - Switzerland
    DW-AS-711-M8-001
    DW-AS-713-M8-001
    NPN N.O. 3 wire
    PNP N.O. 3 wire
    Output signal

    PNP, NPN, NO
    (NC please call)

    Housing materialStainless steel V2A
    Connection M8 3-pin connector
    DiameterM8
    Length (mm)60
    InstallationNon-embeddable
    Operating distance Sn (mm)6
    Frequency500Hz
    ProtectionIP68
    Operating voltage10-30VDC (3-wire)
    Temperature-25 to +70C
    Pressure rating100 bar in 'P' zone




Qty:





Contrinex DW-AS-71 -M8-001 Inductive sensor

PDF Downloads
M8 700 series (215K)

Dimensions

Contrinex
