Home > Instrumentation > Signal Conditioning modules > Phoenix Contact > Phoenix Contact MINI MCR > MINI MCR Signal conversion for temperature signals
Phoenix Contact MINI MCR for temperature conversion
Phoenix Contact

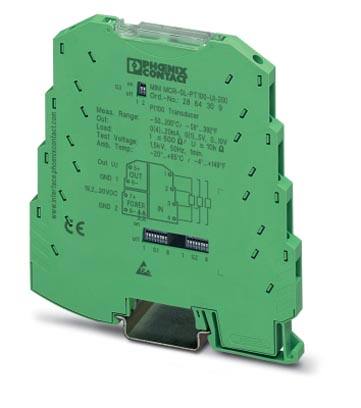

MINI MCR-SL-PT100-UI-200 Temperature transducer PT100 200C


Screw terminal:
  2864370 MINI MCR-SL-PT100-UI-200-NC User configured
  2864309 MINI MCR-SL-PT100-UI-200 Factory configured

Spring cage:
  2864202 MINI MCR-SL-PT100-UI-200-SP-NC User configured
  2864192 MINI MCR-SL-PT100-UI-200-SP Factory configured

    Phoenix Contact - Germany

    MINI MCR-SL-PT100-UI-200
    Configurable PT100 to analog transducer

    Input (configurable)
    Range (configurable)    		PT100 (RTD) 2, 3 or 4 wire
    -50C to +200C
    Output0(4)-20mA
    20-0(4)mA
    0-10V
    10-0V
    0(1)-5V
    Supply voltage19.2 to 30VDC
    ConnectionScrew terminal
    Spring cage




Qty:





Phoenix Contact MINI MCR

Phoenix Contact
