Home > Sensors > Contrinex sensors > M18 inductive > Series 600 - Standard sensors

Contrinex sensors


DW-AS-61?-M18-002 AC/DC Inductive sensor


    Contrinex - Switzerland
    DW-AS-617-M18-002
    DW-AS-618-M18-002    		AC/DC N.O. 2 wire
    AC/DC N.C. 2 wire
    Output signalNO, NC
    Housing materialNickel-plated brass
    Connection M12 connector
    DiameterM18
    Length (mm)69
    InstallationNon-embeddable
    Operating distance Sn (mm)8.0
    Frequency25Hz(AC)
    340Hz(DC)
    ProtectionIP67
    Operating voltage20-265VAC
    20-320VDC
    Temperature-25 to +85C




Qty:

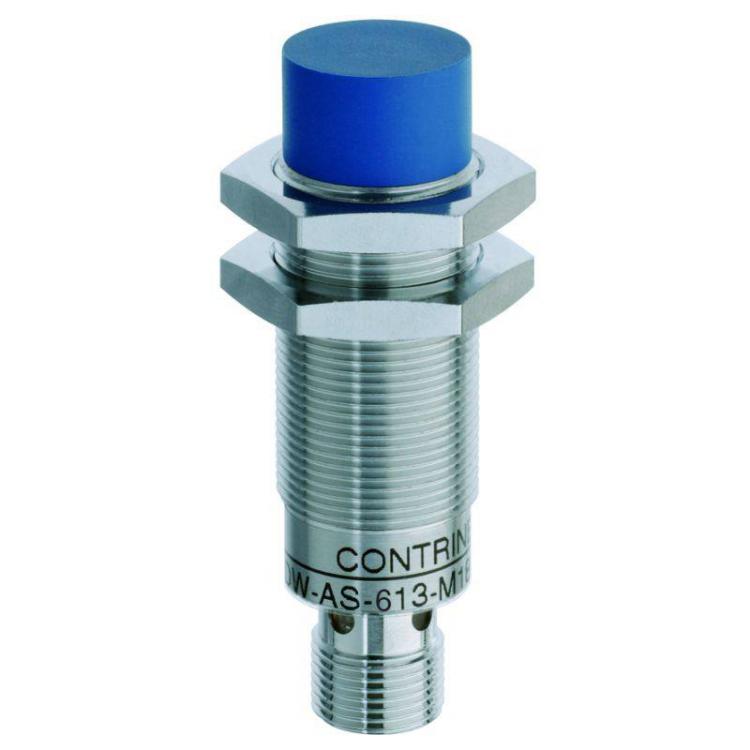

Contrinex M18 69mm body

Dimensions

Contrinex
