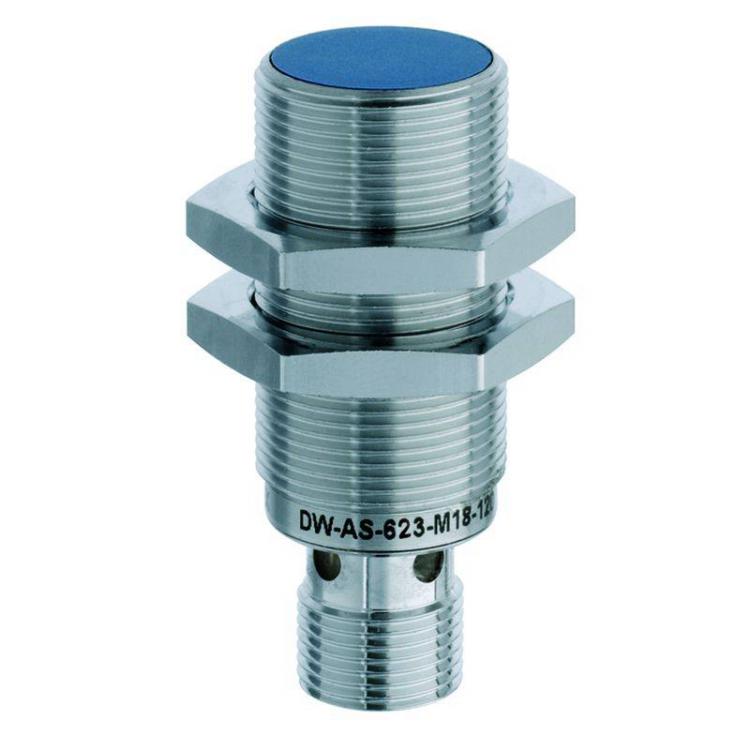

DW-?S-62?-M18-120 Inductive sensor

49mm body, 8.0mm Quasi-embeddable, DC supply
Parts:
DW-AS-621-M18-120: NPN N.O. 3 wire
DW-AS-622-M18-120: NPN N.C. 3 wire
DW-AS-623-M18-120: PNP N.O. 3 wire
DW-AS-624-M18-120: PNP N.C. 3 wire
DW-DS-625-M18-120: N.O. 2 wire

Contrinex - Switzerland
Housing: Chrome-plated brass
Connection: M12 connector
Protection: IP67
Frequency: 1KHz (3-wire), 1KHz (2-wire)
Supply: 10-30VDC (3-wire), 10-65VDC (2-wire)
Temperature: -25 to +70C


Qty:

PDF Downloads
M18 620 3-wire sensor PDF (207K)
M18 620 2-wire sensor PDF (165K)
