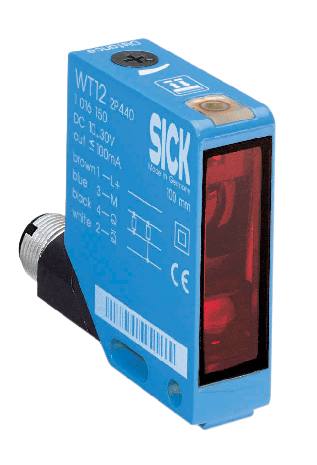

WT12-2 Background suppression (IR)

Erwin Sick. Background suppression (Infrared light)

Parts:
WT12-2P410 1016131 20-250mm background suppression, PNP, M12 4pin plug
WT12-2P110 1016126 20-250mm background suppression, PNP, 2mtr cable
WT12-2N410 1016124 20-250mm background suppression, NPN, M12 4pin plug
WT12-2N110 1016118 20-250mm background suppression, NPN, 2mtr cable

Erwin Sick - Germany
Background suppression
Range: 20-250mm
Supply: 10-30VDC
Infrared light source
Output: PNP or NPN
Light and Dark switching
Connection: 2mtr cable or M12 plug
Enclosure: IP 67
Temperature: -40°C to 60°C
Housing material: Zinc die-cast
Mounting clamps included


Qty:

PDF Downloads
WT12-2 Background suppression IR datasheet (783K)
