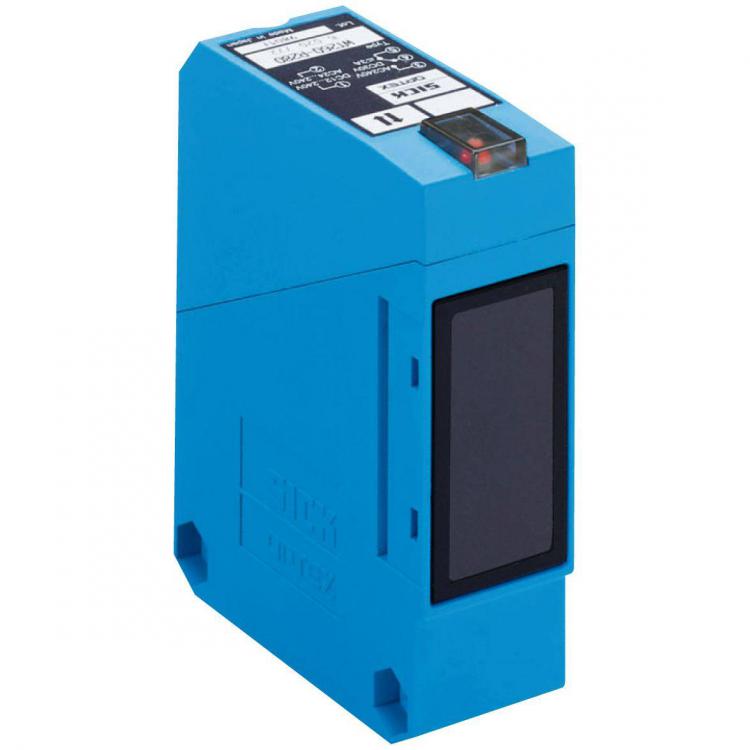

WT260 Energetic DC

Erwin Sick. Diffuse energetic 1500mm or 3200mm.

Parts:
WT260-E270 6020981 1500Mtr diffuse, NPN, terminal chamber
WT260-F270 6020979 1500Mtr diffuse, PNP, terminal chamber
WT260-E470 6021815 1500Mtr diffuse, NPN, M12 4-pin plug
WT260-F470 6020980 1500Mtr diffuse, PNP, M12 4-pin plug

WT260-E280 6020984 3200Mtr diffuse, NPN, terminal chamber
WT260-F280 6020982 3200Mtr diffuse, PNP, terminal chamber
WT260-E480 6021816 3200Mtr diffuse, NPN, M12 4-pin plug
WT260-F480 6020983 3200Mtr diffuse, PNP, M12 4-pin plug

Erwin Sick - Germany
Proximity/diffuse, energetic mode
Model 270 Range: 15-1500mm - Red light source
Model 280 Range: 10-3200mm - Infrared light source
Supply: 10-30VDC
Output: NPN or PNP
Light/dark switching
Connection: terminal chamber via gland or M12 plug
Enclosure: IP 67
Temperature: -25 °C to 55 °C
Housing material: ABS
Mounting bracket included


Qty:

PDF Downloads
W260 spec sheet
