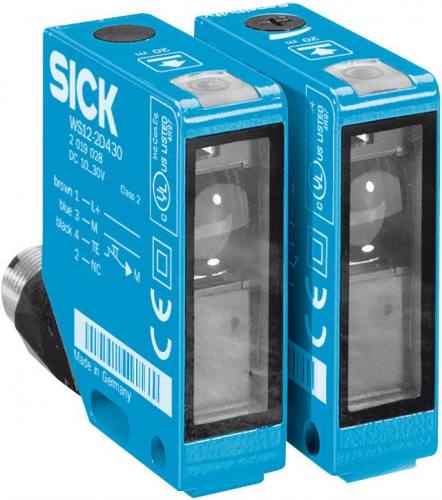

WS/WE12-2 Through-beam

The version 2 products have been superceded by the version 3 products.

Parts:
1016156 WS/WE12-2P130 20Mtr Through-beam PNP 2Mtr cable  - replaced by WSE12-3P1131
1016154 WS/WE12-2N130 20Mtr Through-beam NPN 2Mtr cable - replaced by WSE12-3N1131
1016157 WS/WE12-2P430 20Mtr Through-beam PNP M12 plug - replaced by WSE12-3P2431
1016155 WS/WE12-2N430 20Mtr Through-beam NPN M12 plug - replaced by WSE12-3N2431
1016486 WS/WE12-2P110

• Erwin Sick - Germany
• Through-beam
• Range: 20m
• Supply: 10-30 VDC
• Red light source
• Output: NPN or PNP versions
• Q and not Q output (complement)
• Connection: 2mtr cable or M12, 4-pin plug
• Enclosure: IP 67
• Temperature: -40 °C  to 60 °C
• Housing material: Zinc die-cast
