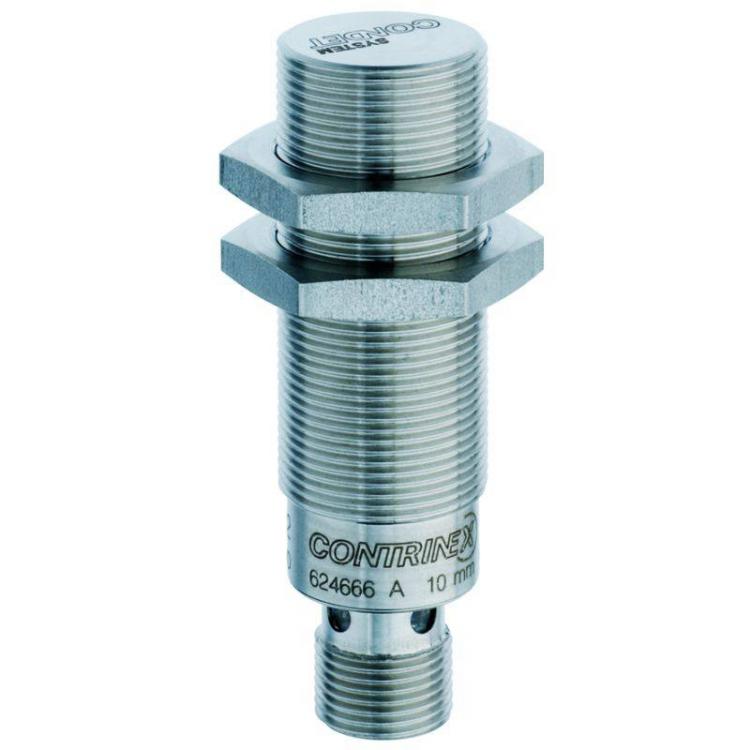

64mm body, 10.0mm* embeddable, DC supply
Parts:
DW-AS-701-M18-002: NPN N.O. 3 wire
DW-AS-702-M18-002: NPN N.C. 3 wire
DW-AS-703-M18-002: PNP N.O. 3 wire
DW-AS-704-M18-002: PNP N.C. 3 wire

Contrinex - Switzerland
Housing: Stainless steel V2A
Connection: M12 connector
Protection: IP67 60 bar pressure rating
Frequency: 200Hz (3-wire)
Supply: 10-30VDC (3-wire)
Temperature: -25 to +70C
** 2mm embeddable versions available. Please call


Qty:

PDF Downloads
M18 700 (10mm) 3-wire sensor
M18 700 (2mm standard) 3-wire sensor
