Red Lion Paradigm HMI
Red Lion Controls


GL350


    Red Lion Controls - USA

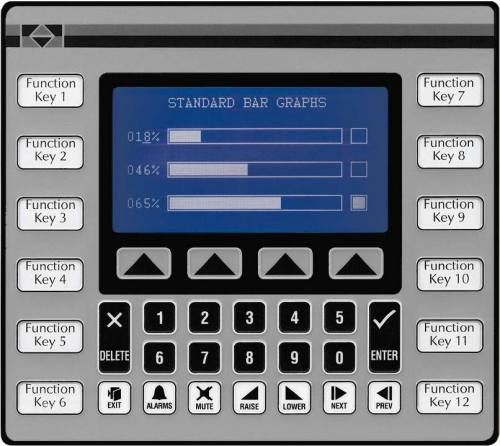

     GL350 Monochrome Graphical Touch Panel HMI
     NOTE: This part is now obsolete.
     The suggested alternative is the GL350VF
     Paradigm HMI display
    Size

    - 8.82" (224mm) x 7.83" (199mm) x 2.52" (64mm)

    Display

    - 256 x 128 pixel full graphic display with cold cathode backlight.
      Text formats up to 16 x 40 characters.
    - 4 screen legendable soft keys,
       numeric keypad and systems keys
    - 12 user re-legendable function keys

    Supply voltage

      11-30Vdc

    Communications

    - One RS232 and one RS485
    - One RS232 programming port
      Check data sheet for communication modes

    Memory

    - 256 K (192 K user) battery backed RAM or
      768 K (704 K user)

     Other features

    - 500 Alarm Point Scanner
    - Recipe Handling
    - 32-bit and floating point math
    - Direct, Network or Modem PLC Control
    - Configured using EDICT 97

    Protection

    - NEMA 4 / IP65










Red Lion GL350 HMI

PDF Downloads
GL350 datasheet (972K)

Red Lion Controls
Got a question about GL350 ?
If you have any question at all about this product, just fill in the boxes below and we'll reply by e-mail within the next 1 working day. Or feel free to give us a call on 01482 225297 - we're here to help!
Your Question/Enquiry:
Your email address:

You may also be interested in:

ICM50000 Serial Converter RS232/485 3-way iso. up to 115K
ICM40030 Serial Converter RS232/485
