Red Lion PCB miniature displays
Red Lion Controls


MDMU


Parts:
MDMU0000 Panel Mount w/Reflective Display
MDMU0010 Panel Mount w/Yel-Grn Backlighting
MDMU0020 Panel Mount w/Red Backlighting
MDMU0100 PC Board Mount w/Reflective Display
MDMU0110 PC Board Mount w/Yel-Grn Bcklghtng
MDMU0120 PC Board Mount w/Red Backlighting

    Red Lion Controls - USA
     MDMU miniature displays
     Digital Counter, Timer, & Tachometer
    Size

     27 mm x 46 mm (Panel Version)
     23 mm x 42 mm (PC Board Version)

    Display

     6 Digit, 0.4" (10 mm)
     Reflective, Yel/Grn or Red LED Backlighting

    Input

     Logic

    Supply voltage Reflective Versions: 5.0 VDC ±10% 100 μA max.
     Backlight Versions: 5.0 VDC ±10% 25 mA max.
    Other features

     Prescaler/Rate Multiplier
     Selectable Decimal Points
     10 Timer Ranges
     Panel or PC Board Mount Versions





Qty:

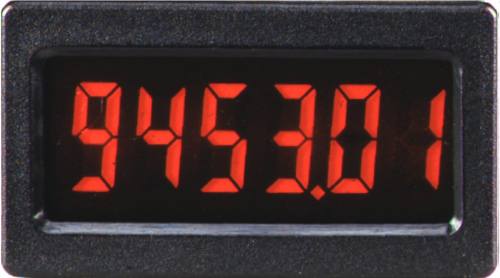

Red Lion MDMU counter/timer/tach PCB display

PDF Downloads
MDMU datasheet (219K)

Red Lion
