Home > Instrumentation > Frequency - Display Only

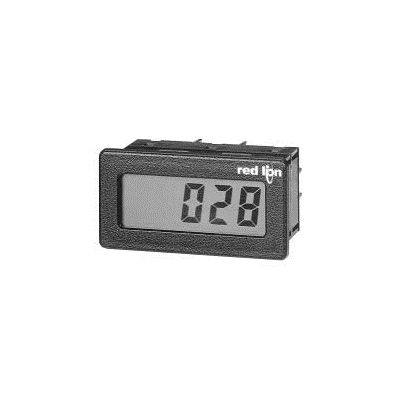

Adjustable timebase 5digit LCD ratemeter DT8


Parts:
DT800000: Adjustable timebase 5digit LCD ratemeter

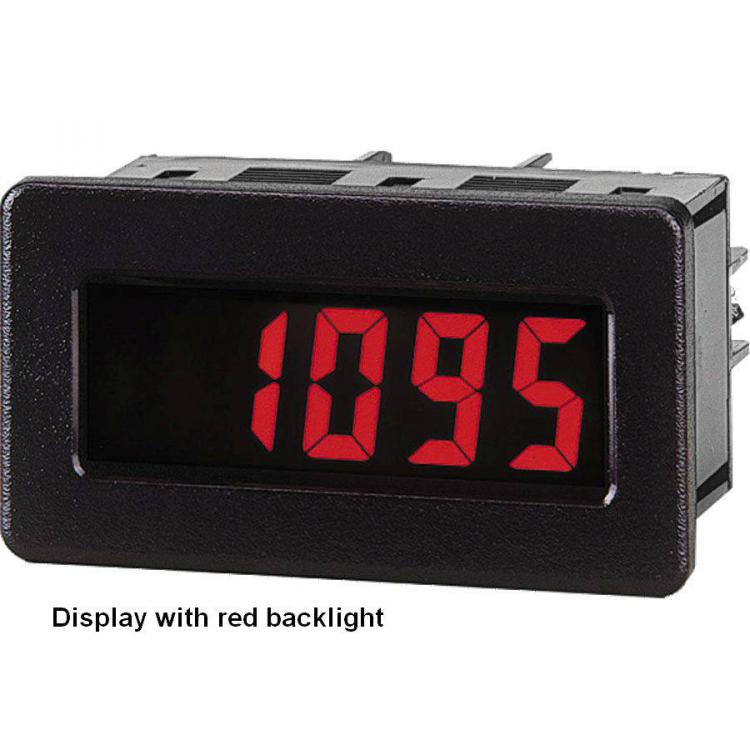

DT800010: Adjustable timebase 5digit LCD ratemeter, green display
DT800020: Adjustable timebase 5digit LCD ratemeter, red display
    Red Lion Controls - USA
     DT8 Digital rate or speed indicator
     Time base method
     Replaces DT9
    Size  39 mm x 75 mm
    Display 5 Digit, 0.6" (15.2 mm) LCD
     Reflective, Red or Green w/Backlighting models
    Input Accepts magnetic or logic type sensor inputs
     Input Frequency: 10KHz
    Supply voltage Internal 3 V Lithium Battery
     External 9 - 28 VDC Required for Backlit Models (See MLPS)
    Outputs None
    Protection NEMA 4X/IP65
    Other features Adjustable Timebase from 4mS to 32sec
     Programmable Decimal point




Qty:





Red Lion DT8 timebase rate indicator

PDF Downloads
DT8 datasheet (444K)

Red Lion
