Phoenix Contact Single phase solid-state contactors
Phoenix Contact


2297170 ELR 1-24DC/600AC-50


    Phoenix Contact - Germany
    Single-phase solid state power relay
    2297170  ELR 1-24DC/600AC-50
    Input voltage4...32VDC
    Typical input current12mA
    Switching frequency25Hz
    IndicatorLED green
    Output voltage range42...660VAC
    45/65Hz)
    Load current50A (see derating curve)
    Surge current1900A (t=10mS)
    Min. load current150mA
    Output protectionRCV circuit
    Dimensions (W/H/D)45/103/103mm


Price: £48.37


Qty:





Phoenix Contact 2297170 ELR 1-24DC/600AC-50

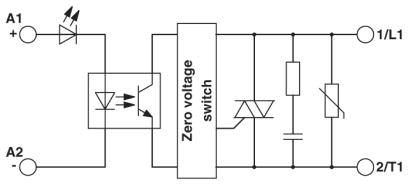

Block diagram
