Red Lion

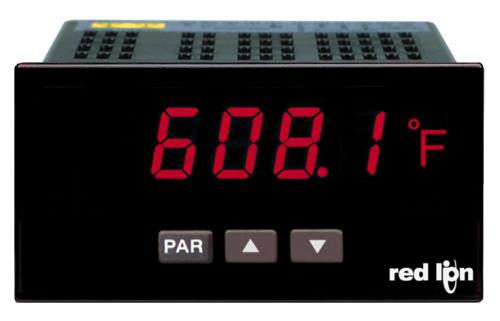

PAXLT000 Panel Meter


    Red Lion Controls - USA
     PAXLT000 Thermocouple/RTD Input panel meter
     PAXLT0U0 UL listed version

    Size  1/8 DIN (50 mm x 97 mm)
    Display 5 Digit, 0.56" (14 mm) LED
     Red LED display models
    Inputs

     Programmable TC Types:
     T, E, J, K, R, S, B, N, C or mV Scale

     3-wire 100 OHM RTD Sensors
     (ALPHA = 0.00385 or ALPHA =0.00392)

    Supply voltage 50-250Vac
     21.6 to 250Vdc
    Outputs Dual 5A relays
    Protection NEMA 4X/IP65
    Other features Simple scaling method
     Displays C or F with 1 or 0.1 degree resolution
     Min/max display
     Programmable user input




Qty:





Red Lion PAXLT universal temperature meter

PDF Downloads
PAXLT datasheet (826K)

Red Lion
Got a question about PAXLT000 Panel Meter ?
If you have any question at all about this product, just fill in the boxes below and we'll reply by e-mail within the next 1 working day. Or feel free to give us a call on 01482 225297 - we're here to help!
Your Question/Enquiry:
Your email address:

You may also be interested in:

Enclosure ENC5 for PAX displays
PAXLBK Label kit for PAX analogue meters
