Series P – High-pressure resistant inductive sensors.
The delivery program includes different size devices for operating pressures from 100 ... 500 bar.   Their main applications are in high-pressure hydraulic systems. They have a stainless steel housing imperviously shrunk onto a ceramic disk at the sensing face. Connection is by means of either a highly flexible cable with a polyurethane sleeve, or an integrated connector. The electric properties are equivalent to those of the corresponding series 500 devices.
Contrinex – P12	Part No.		Output		Sensing range (mm)		Body material		Supply voltage	Protection

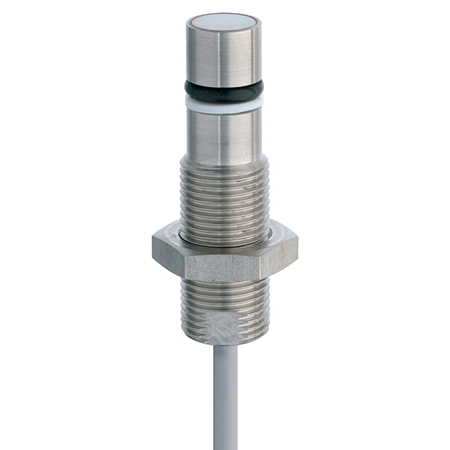

43mm length	DW-AD-501-P12-639 DW-AD-503-P12-639		NPN N.O   PNP N.O		1.5 Embeddable		Stainless steel V2A		10-30VDC	IP68
47mm length	DW-AD-501-P12-625 DW-AD-503-P12-625		NPN N.O   PNP N.O		1.5 Embeddable		Stainless steel V2A		10-30VDC	IP68

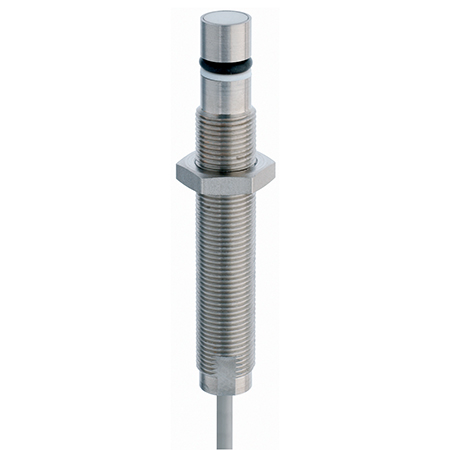

78mm length	DW-AD-501-P12-627 DW-AD-503-P12-627		NPN N.O   PNP N.O		1.5 Embeddable		Stainless steel V2A		10-30VDC	IP68

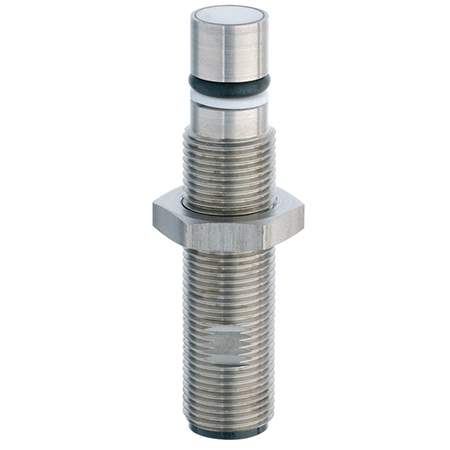

56mm length	DW-AS-501-P12-624 DW-AS-503-P12-624		NPN N.O   PNP N.O		1.5 Embeddable		Stainless steel V2A		10-30VDC	IP68

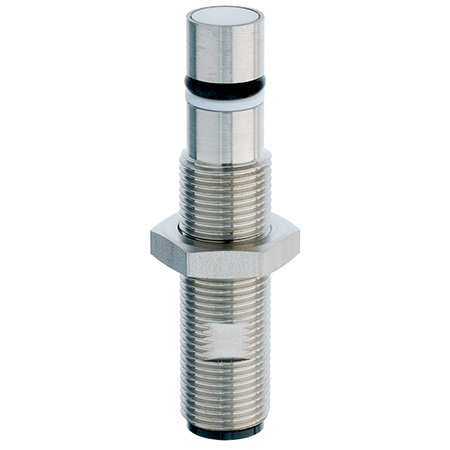

56mm length	DW-AS-501-P12-630 DW-AS-503-P12-630		NPN N.O   PNP N.O		1.5 Embeddable		Stainless steel V2A		10-30VDC	IP68

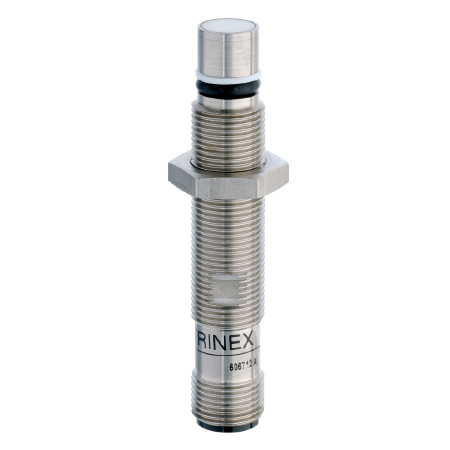

69mm length	DW-AS-501-P12 DW-AS-503-P12 DW-AS-504-P12		NPN N.O   PNP N.O PNP N.C		1.5 Embeddable		Stainless steel V2A		10-30VDC	IP68

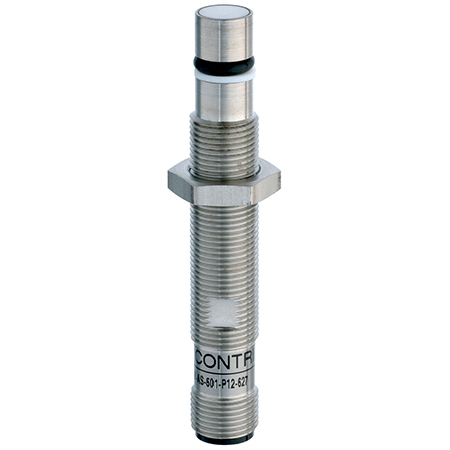

78mm length	DW-AS-501-P12-627 DW-AS-503-P12-627		NPN N.O   PNP N.O		1.5 Embeddable		Stainless steel V2A		10-30VDC	IP68

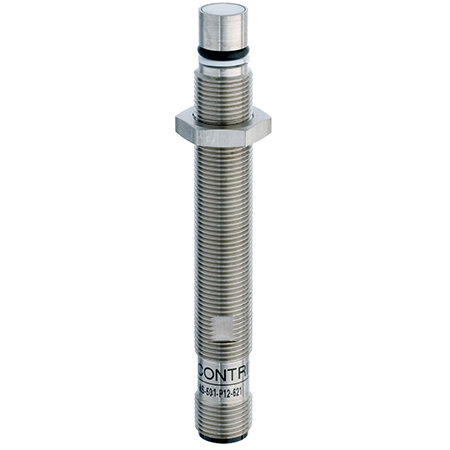

93mm length	DW-AS-501-P12-621 DW-AS-503-P12-621		NPN N.O   PNP N.O		1.5 Embeddable		Stainless steel V2A		10-30VDC	IP68

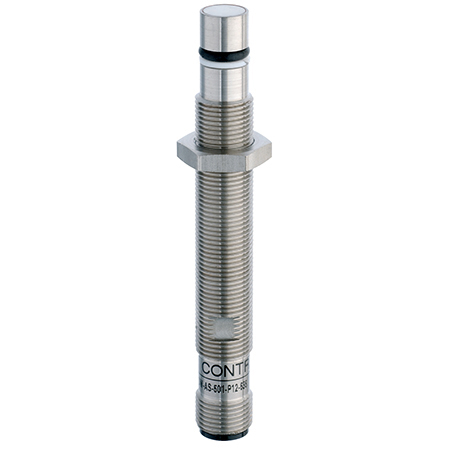

93mm length	DW-AS-501-P12-635 DW-AS-503-P12-635		NPN N.O   PNP N.O		1.5 Embeddable		Stainless steel V2A		10-30VDC	IP68

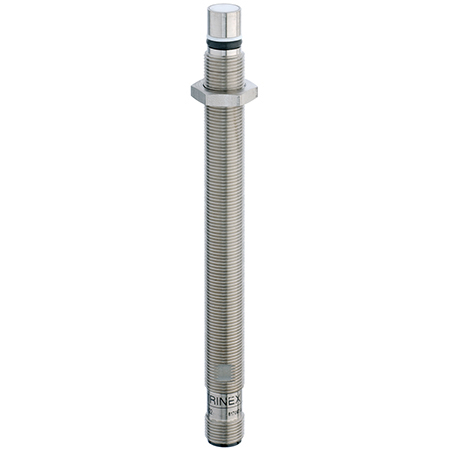

138mm length	DW-AS-501-P12-622 DW-AS-503-P12-622		NPN N.O   PNP N.O		1.5 Embeddable		Stainless steel V2A		10-30VDC	IP68
										Go to top 5
Contrinex – P18	Part No.		Output		Sensing range (mm)		Body material		Supply voltage	Protection
55.5mm length	DW-AS-501-P18 DW-AS-503-P18		NPN N.O   PNP N.O		1.5 Embeddable		Stainless steel V2A		10-30VDC	IP68
										Go to top 5
Contrinex – P20	Part No.		Output		Sensing range (mm)		Body material		Supply voltage	Protection

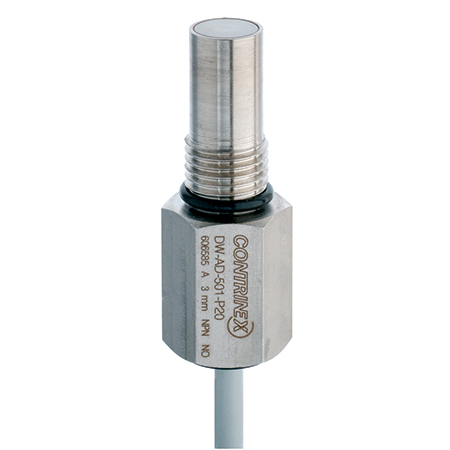

56.5mm length	DW-AD-501-P20 DW-AD-503-P20		NPN N.O   PNP N.O		3.0 Embeddable		Stainless steel V2A		10-30VDC	IP68

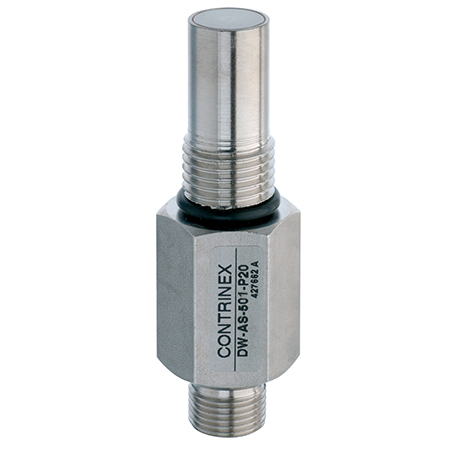

65mm length	DW-AS-501-P20 DW-AS-503-P20 DW-AS-504-P20		NPN N.O   PNP N.O PNP N.C		3.0 Embeddable		Stainless steel V2A		10-30VDC	IP68
