Home > Instrumentation > Panel Meter - expandable

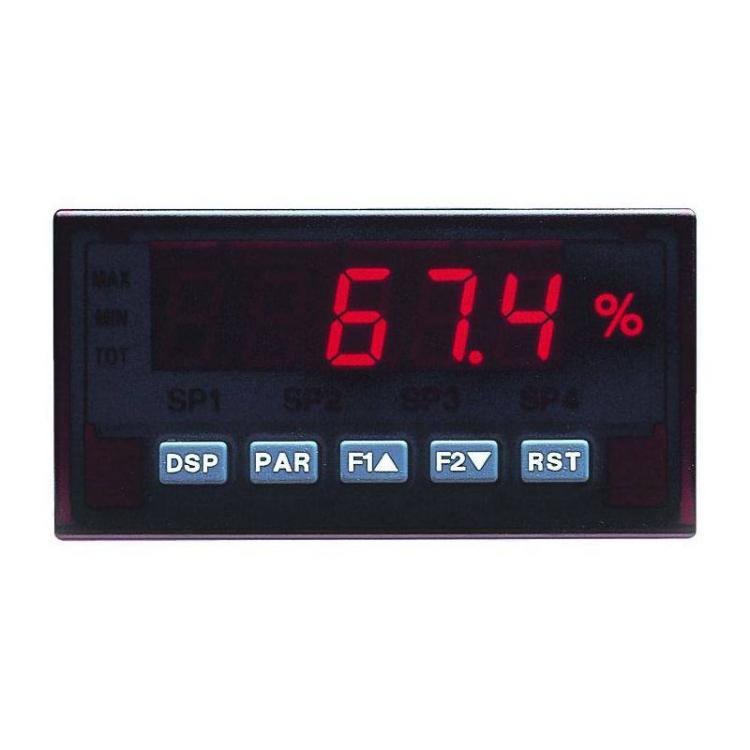

Panel meter PAXD


Parts:
PAXD0000: 85-250Vac supply, Red
PAXD0010: 11-36Vdc/24Vac supply, Red
PAXD0100: 85-250Vac supply, Green
PAXD0110: 11-36Vdc/24Vac supply, Green
    Red Lion Controls - USA
     PAXD Universal DC Input panel meter
     Expandable with additional modules (see accessories)
    Size  1/8 DIN (50 mm x 97 mm)
    Display 4 1/2 Digit, 0.56" (14 mm) LED
     Red and green LED display models
    Input

     Four voltage (300 VDC Max) ranges:
       200mV, 2V, 20V and 300VDC

     Five current (2A DC Max) Ranges:
       200uA, 2mA, 20mA, 200mA and 2ADC

     Three Resistance Ranges:
        100 ohm, 1K ohm and 10K ohm

    Supply voltage 85-250Vac
     11-36Vdc/24Vac
    Outputs Up to Four Setpoint Alarm Outputs
     Relay or transistor modules
     Analog output module
     (see accessories)
    Communications  RS232, RS485, MODBUS, DeviceNet, Profibus
     (see accessories)
    Protection NEMA 4X/IP65
     Other features Simple scaling method
     16 point scaling for non-linear inputs
     Programmable Decimal point
     Adjustable display update times
     24Vdc excitation power
     Min/max display
     Programmable Function Keys/User inputs
     PC Software Available for Meter Configuration
       (requires serial module)




Qty:





PAXD decade input indicator

Red Lion
