| PRODUCTS |
|
|
| PAX panel meters |
|
|
|
|
|
| Red Lion Controls - USA |
PAXP Process Input panel meter
PAXP0000: 85-250Vac supply, Red
PAXP0010: 11-36Vdc / 24Vac supply, Red
PAXP0100: 85-250Vac supply, Green
PAXP0110: 11-36Vdc / 24Vac supply, Green |

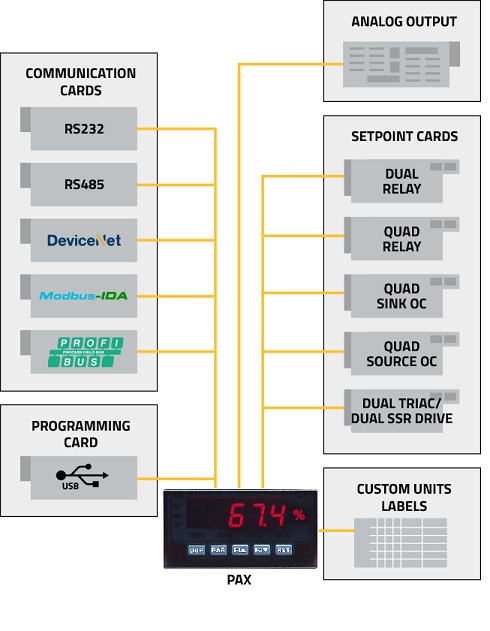

| Expandable with additional modules (see accessories) |
| Size |
1/8 DIN (50 mm x 97 mm) |
| Display |
4 1/2 Digit, 0.56" (14 mm) LED
Red and green LED display models |
| Input |
20 mA or 10 VDC
|
| Supply voltage |
85-250Vac
11-36Vdc/24Vac |
| Outputs |
Up to Four Setpoint Alarm Outputs
Relay or transistor modules
Analog output module
(see accessories) |
| Communications |
RS232, RS485, MODBUS, DeviceNet, Profibus
(see accessories) |
| Protection |
NEMA 4X/IP65 |
| Other features |
Simple scaling method
16 point scaling for non-linear inputs
Programmable Decimal point
Adjustable display update times
24Vdc excitation power
Min/max display
Programmable Function Keys/User inputs
PC Software Available for Meter Configuration
(requires serial module) |
|
|
PAXP Panel meter
|
|
 |
|
|
|
| Red Lion Controls - USA |
PAXD Universal DC Input panel meter
PAXD0000: 85-250Vac supply, Red
PAXD0010: 11-36Vdc/24Vac supply, Red
PAXD0100: 85-250Vac supply, Green
PAXD0110: 11-36Vdc/24Vac supply, Green |
| Expandable with additional modules (see accessories) |
| Size |
1/8 DIN (50 mm x 97 mm) |
| Display |
4 1/2 Digit, 0.56" (14 mm) LED
Red and green LED display models |
| Input |
Four voltage (300 VDC Max) ranges:
200mV, 2V, 20V and 300VDC
Five current (2A DC Max) Ranges:
200uA, 2mA, 20mA, 200mA and 2ADC
Three Resistance Ranges:
100 ohm, 1K ohm and 10K ohm
|
| Supply voltage |
85-250Vac
11-36Vdc/24Vac |
| Outputs |
Up to Four Setpoint Alarm Outputs
Relay or transistor modules
Analog output module
(see accessories) |
| Communications |
RS232, RS485, MODBUS, DeviceNet, Profibus
(see accessories) |
| Protection |
NEMA 4X/IP65 |
| Other features |
Simple scaling method
16 point scaling for non-linear inputs
Programmable Decimal point
Adjustable display update times
24Vdc excitation power
Min/max display
Programmable Function Keys/User inputs
PC Software Available for Meter Configuration
(requires serial module) |
|
|
PAXD Panel meter
|
|
|
|
|
|
| Red Lion Controls - USA |
PAXT T/C and PT100 input panel meter
PAXT0000: 85-250Vac supply, Red
PAXT0010: 11-26Vdc/24Vac supply, Red
PAXT0100: 85-250Vac supply, Green
PAXT0110: 11-26Vdc/24Vac supply, Green |
| Expandable with additional modules (see accessories) |
| Size |
1/8 DIN (50 mm x 97 mm) |
| Display |
4 1/2 Digit, 0.56" (14 mm) LED
Red and green LED display models |
| Input |
Thermocouple:
T, E, J, K, R, S, B, N and C.
RTD, PT100:
Four types.
Custom mV range:
-10 to 65mV
|
| Supply voltage |
85-250Vac
11-36Vdc/24Vac |
| Outputs |
Up to Four Setpoint Alarm Outputs
Relay or transistor modules
Analog output module
(see accessories) |
| Communications |
RS232, RS485, MODBUS, DeviceNet, Profibus
(see accessories) |
| Protection |
NEMA 4X/IP65 |
| Other features |
F or C Unit Overlay w/Backlight (LPAX only)
Simple scaling method
16 point scaling for custom mV inputs
Programmable Decimal point
Adjustable display update times
Min/max display
Programmable Function Keys/User inputs
PC Software Available for Meter Configuration
(requires serial module) |
|
|
PAXT Panel meter
|
|
|
|
|
|
| Red Lion Controls - USA |
|
PAXS Strain Gauge panel meter
Load Cell, Pressure and Torque Bridge Inputs
PAXS0000: 85-250Vac supply, Red
PAXS0010: 11-26Vdc/24Vac, supply, Red
PAXS0100: 85-250Vac supply, Green
PAXS0110: 11-26Vdc/24Vac supply, Green
|
| Expandable with additional modules (see accessories) |
| Size |
1/8 DIN (50 mm x 97 mm) |
| Display |
4 1/2 Digit, 0.56" (14 mm) LED
Red and green LED display models |
| Input |
+/- 24 mV or +/- 240 mV
|
| Supply voltage |
85-250Vac
11-36Vdc/24Vac |
| Outputs |
Up to Four Setpoint Alarm Outputs
Relay or transistor modules
Analog output module
(see accessories) |
| Communications |
RS232, RS485, MODBUS, DeviceNet, Profibus
(see accessories) |
| Protection |
NEMA 4X/IP65 |
| Other features |
Simple scaling method
16 point scaling for non-linear inputs
Programmable Decimal point
Adjustable display update times
5 or 10 VDC Bridge Excitation
Min/max display
Programmable Function Keys/User inputs
PC Software Available for Meter Configuration
(requires serial module) |
|
|
PAXS Panel meter
|
|
|
|
|
|
| Red Lion Controls - USA |
PAXH True RMS AC Voltage/Current panel meter
PAXH0000 : True RMS V/I, 85-250Vac Supply, Red
PAXH0100 : True RMS V/I, 85-250Vac Supply, Green |
| Expandable with additional modules (see accessories) |
| Size |
1/8 DIN (50 mm x 97 mm) |
| Display |
4 1/2 Digit, 0.56" (14 mm) LED
Red and green LED display models |
| Input |
4 Voltage Ranges (300 VAC Max)
5 Current Ranges (5A Max)
|
| Supply voltage |
85-250Vac |
| Outputs |
Up to Four Setpoint Alarm Outputs
Relay or transistor modules
Analog output module
(see accessories) |
| Communications |
RS232, RS485, MODBUS, DeviceNet, Profibus
(see accessories) |
| Protection |
NEMA 4X/IP65 |
| Other features |
Simple scaling method
16 point scaling for non-linear inputs
Programmable Decimal point
Adjustable display update times
Min/max display
Programmable Function Keys/User inputs
PC Software Available for Meter Configuration
(requires serial module) |
|
|
PAXH Panel meter
|
|
|
|
|
|
| Red Lion Controls - USA |
PAXDP Dual input process meter
PAXDP0000: 85-250Vac supply
PAXDP0010: 18-36Vdc/24Vac supply |
| Expandable with additional modules (see accessories) |
| Size |
1/8 DIN (50 mm x 97 mm) |
| Display |
4 1/2 Digit, 0.56" (14 mm) LED
Red and green LED display models |
| Input |
Two inputs:
20 mA or 10 VDC
Linearization/Square Root Extraction Input Range
Math functions on input values:
C+A+B, C-A-B, C+A-B,
AB/C, CA/B or C(A/B-1)
|
| Supply voltage |
85-250Vac
11-36Vdc/24Vac |
| Outputs |
Up to Four Setpoint Alarm Outputs
Relay or transistor modules
Analog output module
(see accessories) |
| Communications |
RS232, RS485, MODBUS, DeviceNet, Profibus
(see accessories) |
| Protection |
NEMA 4X/IP65 |
| Other features |
Simple scaling method
16 point scaling for non-linear inputs
Programmable Decimal point
Adjustable display update times (5-105 readings/sec)
18Vdc excitation power
Min/max display
Programmable Function Keys/User inputs
PC Software Available for Meter Configuration
(requires serial module) |
|
|
PAXDP Dual input process meter
|
|
|
|
|
|
|
|
