Red Lion PAX panel meters
Red Lion

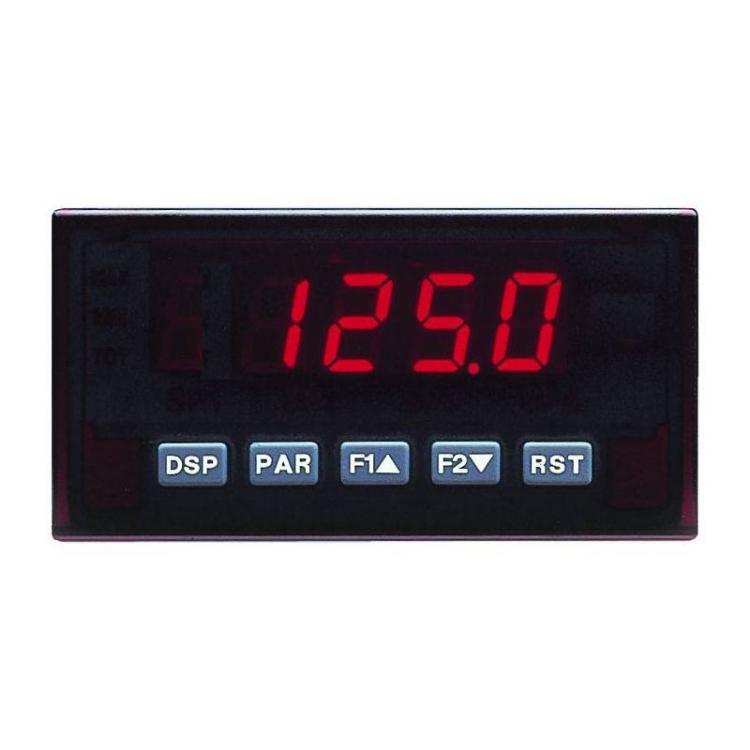

PAXH Panel meter


    Red Lion Controls - USA
     PAXH True RMS AC Voltage/Current panel meter

    PAXH0000 : True RMS V/I, 85-250Vac Supply, Red
    PAXH0100 : True RMS V/I, 85-250Vac Supply, Green
     Expandable with additional modules (see accessories)
    Size  1/8 DIN (50 mm x 97 mm)
    Display 4 1/2 Digit, 0.56" (14 mm) LED
     Red and green LED display models
    Input

     4 Voltage Ranges (300 VAC Max)
     5 Current Ranges (5A Max)

    Supply voltage 85-250Vac
    Outputs Up to Four Setpoint Alarm Outputs
     Relay or transistor modules
     Analog output module
     (see accessories)
    Communications  RS232, RS485, MODBUS, DeviceNet, Profibus
     (see accessories)
    Protection NEMA 4X/IP65
     Other features Simple scaling method
     16 point scaling for non-linear inputs
     Programmable Decimal point
     Adjustable display update times
     Min/max display
     Programmable Function Keys/User inputs
     PC Software Available for Meter Configuration
       (requires serial module)




Qty:





PAXH AC Voltage/Current indicator

Red Lion
Got a question about PAXH Panel meter ?
If you have any question at all about this product, just fill in the boxes below and we'll reply by e-mail within the next 1 working day. Or feel free to give us a call on 01482 225297 - we're here to help!
Your Question/Enquiry:
Your email address:

You may also be interested in:

CT Current transformers
Enclosure ENC5 for PAX displays
PAXLBK Label kit for PAX analogue meters
PAXCDC Communications cards
PAXCDL10 Analogue output card
PAXCDS Digital output cards
