Home > Instrumentation > Panel Meter - expandable

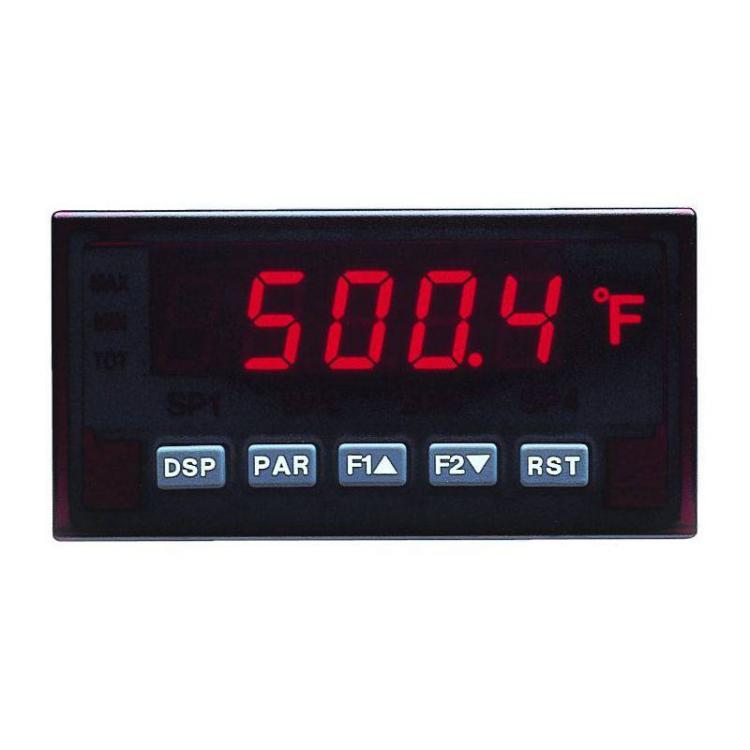

Panel meter PAXT


Parts:
PAXT0000: 85-250Vac supply, Red
PAXT0010: 11-26Vdc/24Vac supply, Red
PAXT0100: 85-250Vac supply, Green
PAXT0110: 11-26Vdc/24Vac supply, Green
    Red Lion Controls - USA
     PAXT T/C and PT100 input panel meter
     Expandable with additional modules (see accessories)
    Size  1/8 DIN (50 mm x 97 mm)
    Display 4 1/2 Digit, 0.56" (14 mm) LED
     Red and green LED display models
    Input

     Thermocouple:
        T, E, J, K, R, S, B, N and C.
     RTD, PT100:
        Four types.
    Custom mV range:
        -10 to 65mV

    Supply voltage 85-250Vac
     11-36Vdc/24Vac
    Outputs Up to Four Setpoint Alarm Outputs
     Relay or transistor modules
     Analog output module
     (see accessories)
    Communications  RS232, RS485, MODBUS, DeviceNet, Profibus
     (see accessories)
    Protection NEMA 4X/IP65
     Other features F or C Unit Overlay w/Backlight (LPAX only)
     Simple scaling method
     16 point scaling for custom mV inputs
     Programmable Decimal point
     Adjustable display update times
     Min/max display
     Programmable Function Keys/User inputs
     PC Software Available for Meter Configuration
       (requires serial module)




Qty:





PAXT thermocouple and PT100/RTD indicator

Red Lion
