Home > Instrumentation > Panel Meter - Display only

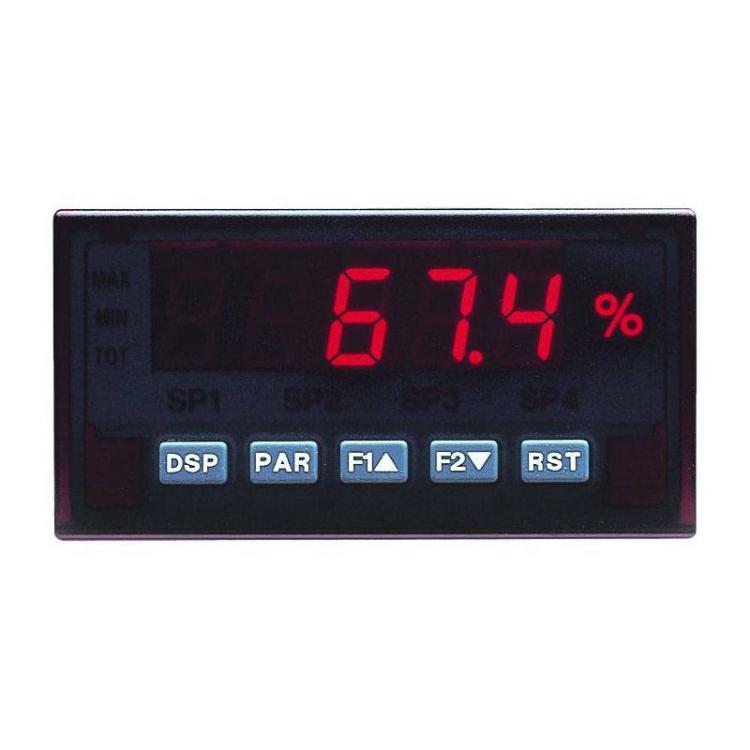

Dual input process meter PAXDP


    Red Lion Controls - USA
     PAXDP Dual input process meter
     Expandable with additional modules (see accessories)
    Size  1/8 DIN (50 mm x 97 mm)
    Display 4 1/2 Digit, 0.56" (14 mm) LED
     Red and green LED display models
    Input

     Two inputs:
        20 mA or 10 VDC
     Linearization/Square Root Extraction Input Range
     Math functions on input values:
      C+A+B, C-A-B, C+A-B,
      AB/C, CA/B or C(A/B-1)

    Supply voltage 85-250Vac
     11-36Vdc/24Vac
    Outputs Up to Four Setpoint Alarm Outputs
     Relay or transistor modules
     Analog output module
     (see accessories)
    Communications  RS232, RS485, MODBUS, DeviceNet, Profibus
     (see accessories)
    Protection NEMA 4X/IP65
     Other features Simple scaling method
     16 point scaling for non-linear inputs
     Programmable Decimal point
     Adjustable display update times (5-105 readings/sec)
     18Vdc excitation power
     Min/max display
     Programmable Function Keys/User inputs
     PC Software Available for Meter Configuration
       (requires serial module)




Qty:





PAXDP dual input process indicator

PDF Downloads
PAXDP PDF
