Contrinex 6.5mm sensors
Contrinex logo

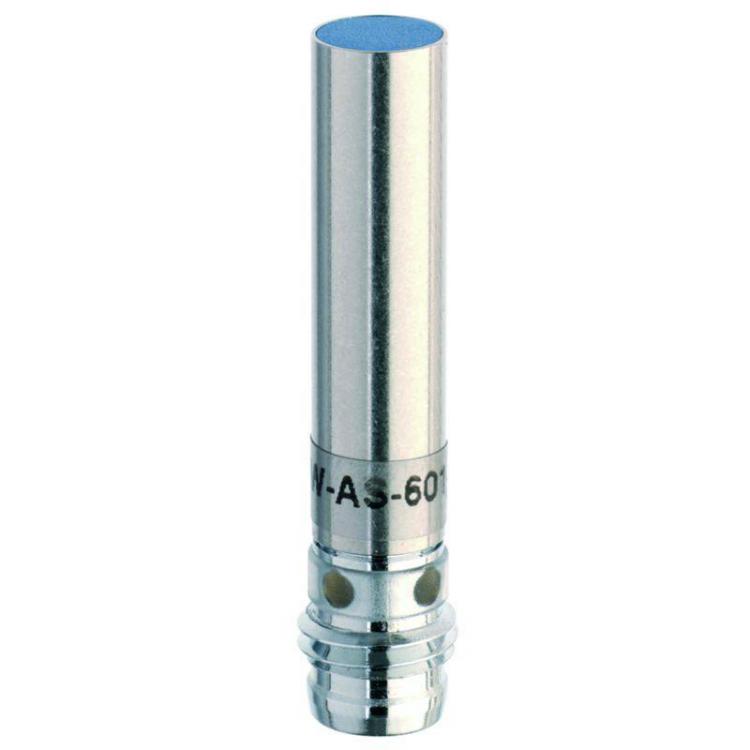

DW-AS-60?-065-123 Inductive sensor


    Contrinex - Switzerland
    DW-AS-601-065-123
    DW-AS-602-065-123
    DW-AS-603-065-123
    DW-AS-604-065-123    		NPN N.O. 3 wire
    NPN N.C. 3 wire
    PNP N.O. 3 wire
    PNP N.C. 3 wire
    Output signalPNP, NPN, NO, NC
    Housing materialStainless steel V2A
    Connection M8 3-pin connector
    Diameter6.5mm
    Length (mm)34
    InstallationEmbeddable
    Operating distance Sn (mm)1.5
    Frequency5KHz
    ProtectionIP67
    Operating voltage10-30VDC (3-wire)
    Temperature-25 to +70C




Qty:





Contrinex DW-AS-60 -065-123 Inductive sensor

Dimensions

Contrinex
Got a question about DW-AS-60?-065-123 Inductive sensor ?
If you have any question at all about this product, just fill in the boxes below and we'll reply by e-mail within the next 1 working day. Or feel free to give us a call on 01482 225297 - we're here to help!
Your Question/Enquiry:
Your email address:
