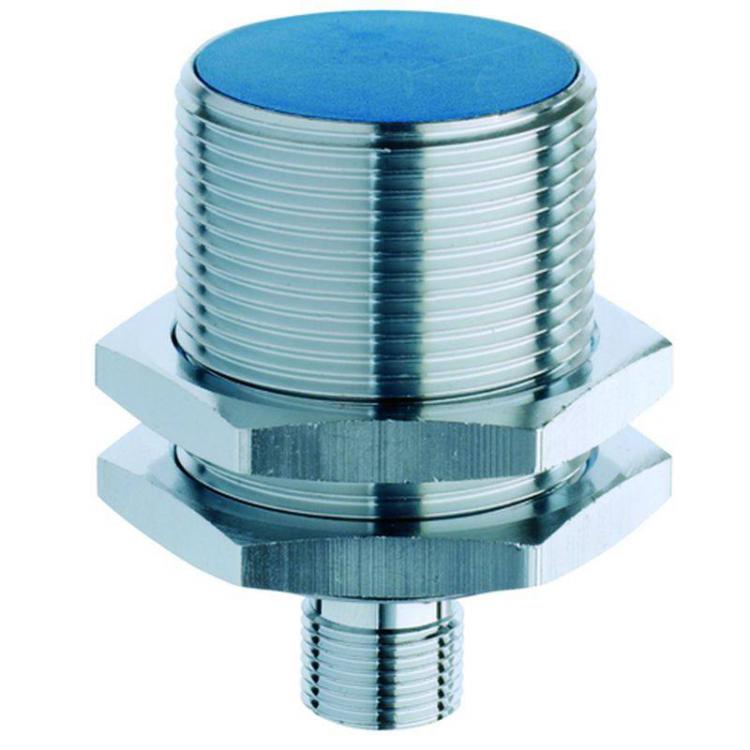

DW-?S-60?-M30-120 Inductive sensor

48mm body, 10mm embeddable, DC supply

Parts:
DW-AS-601-M30-120: NPN N.O. 3 wire
DW-AS-602-M30-120: NPN N.C. 3 wire
DW-AS-603-M30-120: PNP N.O. 3 wire
DW-AS-604-M30-120: PNP N.C. 3 wire
DW-DS-605-M30-120: N.O. 2 wire
DW-DS-606-M30-120: N.C. 2 wire

Contrinex - Switzerland
Housing: Chrome-plated brass
Connection: M12 connector
Protection: IP67
Frequency: 850Hz(3-wire), 600Hz(2-wire)
Supply: 10-30VDC (3-wire), 10-65VDC (2-wire)
Temperature: -25 to +70C


Qty:

Contrinex DW-?S-60?-M30-120 Inductive sensor

PDF Downloads
M30 600 3-wire sensor PDF (403K)
M30 600 2-wire sensor PDF (298K)
