Parts:

M18TB8	2m shielded cable	8:1 Integrated lens
M18TB8Q	M12 5-pin plug	8:1 Integrated lens
M18TB6E	2m shielded cable	6:1 Enclosed Plastic face
M18TB6EQ	M12 5-pin plug	6:1 Enclosed Plastic face
M18TB14	2m shielded cable	14:1 Germanium lens

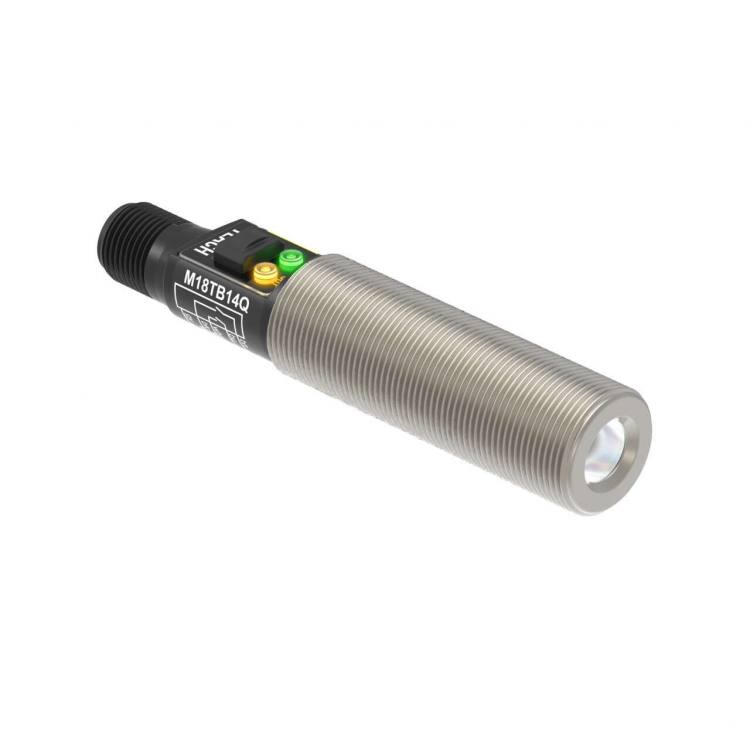

M18TB14Q	M12 5-pin plug	14:1 Germanium lens



• Banner Enginnering - USA
• M18 product temperature sensor
• Temperature range: 0 to 300C
• Fast 25 ms response time (up to 20 Hz switching speed)
• Easy-to-use TEACH mode, no potentiometer adjustments
• Small self-contained package, no auxiliary controller needed
• Rugged encapsulated design for harsh environments
• Three lens options
• Supply: 10-30VDC
• Output: NPN and PNP
• Connection:
  2 meter or 9 meter unterminated cable
  5-pin Euro-style QD connector
• Product motion not required for sensing
• Remote Teach available in both Static and Dynamic modes
