| Phoenix Contact - Germany |

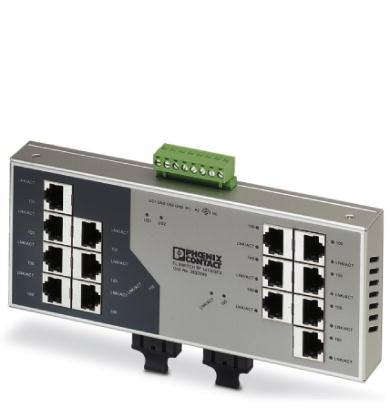

| 2832593 FL SWITCH SF 14TX/2FX |
| Ethernet Switch, 14 TP RJ45 ports, 2 fiber optic (FO) port |
| Interface |
Ethernet (RJ45) |
| No. of ports |
14 RJ45 ports, 2 fiber optic (FO) port |
| Type of connection |
RJ45 sockets and SC duplex FO port. Autonegotiation and autocrossing. |
| Transmission physics |
Ethernet in RJ45 twisted pair. Multimode glass fiber. |
| Transmission speed |
RJ45: 10/100 MBit/s. FO port: 100 MBit/s (ST format). |
| Transmission length |
RJ45: 100 m (per segment). FO port: 6400 m (see datasheet) |
| Signal LEDs |
Power supply and redundant voltage supply. Link and activity per port. |
| Supply voltage |
18.5 VDC ... 30.2 VDC |
| Ambient temperature (operation) |
0C ... 55C |
