| Phoenix Contact QUINT UPS |
|
|
|
|
|
| Phoenix Contact - Germany |
|
2866213 QUINT-BUFFER/24DC/20
Buffer module
|
| Input voltage |
22.5 to 30VDC |
| Output voltage |
24VDC
|
| Output current |
20A |
| Parallel connection |
Yes
|
| Signalling |
LED
'Power good' output |
| Storage medium |
Internal capacitor
|
|
|
2866213 QUINT-BUFFER/24DC/20
|
|
 |
|
|
|
| Phoenix Contact - Germany |
|
2866226 QUINT-DC-UPS/24DC/10
UPS power supply
|
| Input voltage |
22.5 to 30VDC |
| Output voltage |
24VDC
|
| Output current |
10A |
| Parallel connection |
No
|
| Signalling |
LED, relay contact
'Alarm'
'Battery charge'
'Battery mode' |
| Storage medium |
Internal battery, 1.3Ah
|
|
|
2866226 QUINT-DC-UPS/24DC/10
|
|
|
|
|
|
| Phoenix Contact - Germany |
|
2866239 QUINT-DC-UPS/24DC/20
UPS power supply
|
| Input voltage |
22.5 to 30VDC |
| Output voltage |
24VDC
|
| Output current |
20A |
| Parallel connection |
No
|
| Signalling |
LED, relay contact
'Alarm'
'Battery charge'
'Battery mode' |
| Storage medium |
External battery
3.4Ah, 7.2Ah, 12Ah
|
|
|
2866239 QUINT-DC-UPS/24DC/20
|
|
|
|
|
|
| Phoenix Contact - Germany |
|
2866242 QUINT-DC-UPS/24DC/40
UPS power supply
|
| Input voltage |
22.5 to 30VDC |
| Output voltage |
24VDC
|
| Output current |
40A |
| Parallel connection |
No
|
| Signalling |
LED, relay contact
'Alarm'
'Battery charge'
'Battery mode' |
| Storage medium |
External battery
3.4Ah, 7.2Ah, 12Ah
|
|
|
2866242 QUINT-DC-UPS/24DC/40
|
|
|
|
|
|
| Phoenix Contact - Germany |
|
2866349 QUINT-BAT/24DC/3.4AH
UPS rechargeable battery
|
| Input voltage |
24VDC |
| Output voltage |
24VDC
|
| Nominal capacity |
3.4Ah |
| Buffer period |

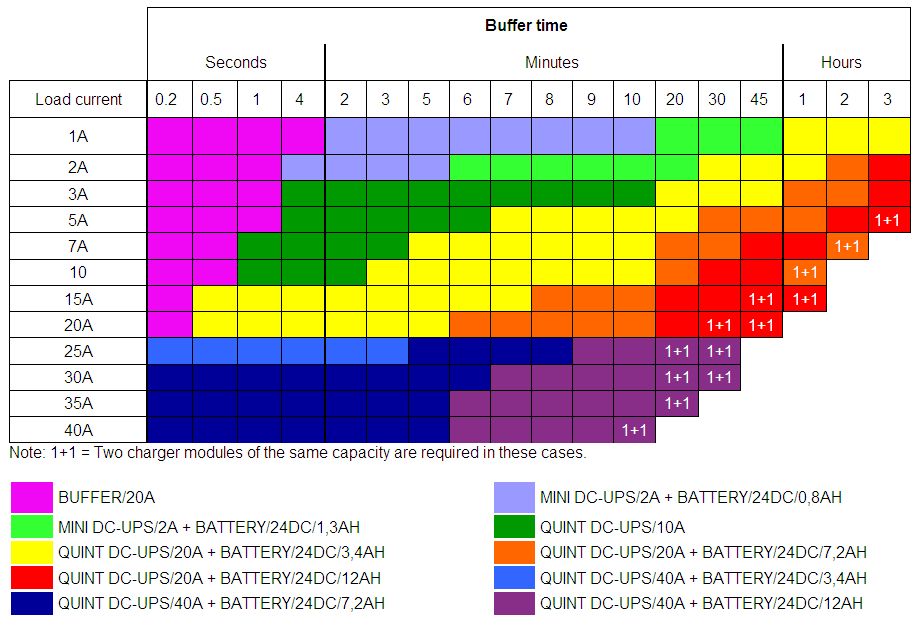

Refer to selection chart
|
| Output current |
25A |
| Parallel connection |
Yes
|
|
|
2866349 QUINT-BAT/24DC/3.4AH
|
|
|
|
|
|
| Phoenix Contact - Germany |
|
2866352 QUINT-BAT/24DC/7.2AH
UPS rechargeable battery
|
| Input voltage |
24VDC |
| Output voltage |
24VDC
|
| Nominal capacity |
7.2Ah |
| Buffer period |
Refer to selection chart
|
| Output current |
50A |
| Parallel connection |
Yes
|
|
|
2866352 QUINT-BAT/24DC/7.2AH
|
|
|
|
|
|
| Phoenix Contact - Germany |
|
2866365 QUINT-BAT/24DC/12AH
UPS rechargeable battery
|
| Input voltage |
24VDC |
| Output voltage |
24VDC
|
| Nominal capacity |
12Ah |
| Buffer period |
Refer to selection chart
|
| Output current |
50A |
| Parallel connection |
Yes
|
|
|
2866365 QUINT-BAT/24DC/12AH
|
|
|
|
|
|
| Phoenix Contact - Germany |
|
2866857 QUINT-ADAPTER/4
Assembly adapter for QUINT-BAT/24DC batteries.
Allow units to be mounted on 35mm rail.
Note: This item is supplied with the 3.4AH unit (2866349)
|
|
|
2866857 QUINT-ADAPTER/4
|
|
|
