Parts:
DP5D0000: Universal DC input, 85-250Vac supply
DP5D0010: Universal DC input, 11-36Vdc,24Vac supply
DP5P0000: Process input, 85-250Vac supply
DP5P0010: Process input, 11-36Vdc,24Vac supply
DP5T0000: Thermocouple/RTD input, 85-250Vac supply
DP5T0010: Thermocouple/RTD input, 11-36Vdc,24Vac supply
| Red Lion Controls - USA |

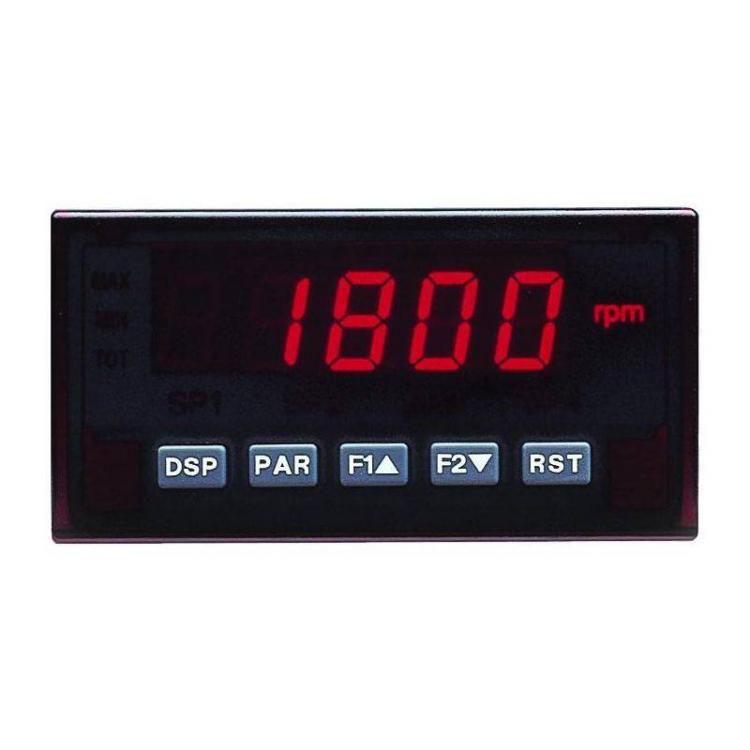

| DP5 Indicators/meters |
| |
| Size | 1/8 DIN (50 mm x 97 mm) |
| Display | 4 1/2 Digit, 0.56" (14 mm) LED |
| Input | DP5D Universal DC Input: 4 Voltage (300 VDC MAX) ranges 5 Current (2 A DC MAX) ranges
DP5P Process input: 20 mA or 10VDC
DP5T Thermocouple/RTD input: 9 T/c types, 4 RTD PT100 and direct |
| Supply voltage | 85-250Vac 11-36Vdc/24Vac |
| Protection | NEMA 4X/IP65 |
| Other features | DP5T: F or C Unit Overlay with Backlight 9 digit totaliser (integrator) Programmable Function Keys/User input |
