Phoenix Contact INTERFACE for power signals
Phoenix Contact

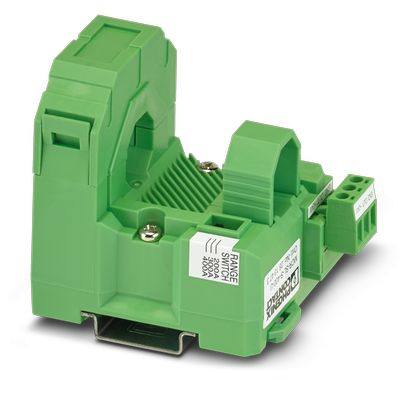

MCR-SL-S-400-U ..-I-LP


    Phoenix Contact - Germany

    2813473 MCR-SL-S-400-U 100A 5V/10V
    2813509 MCR-SL-S-400-I-LP 100A 4/20mA
    MCR current measuring transducer, for measuring sinusoidal and non-sinusoidal alternating currents, input current 0-400A, output voltage 0-(5) 10 V or 4-20mA loop-powered.

    Input0 to 200/300/400A Switch selectable.
    Output(s)0-5V or 0-10V (model ..-U)
    4-20mA loop-powered (model ..-I-LP)
    Supply voltage20 to 30VDC
    Frequency
    		30Hz to 6000Hz
    ConnectionThrough connection of cable up to 18mm diameter.
    Screw terminal for output.
    Other features
    		True r.m.s. value measurement.
    Can be retrofitted using the split core (Rogowski coil).
    Electrical isolation of input and output.
